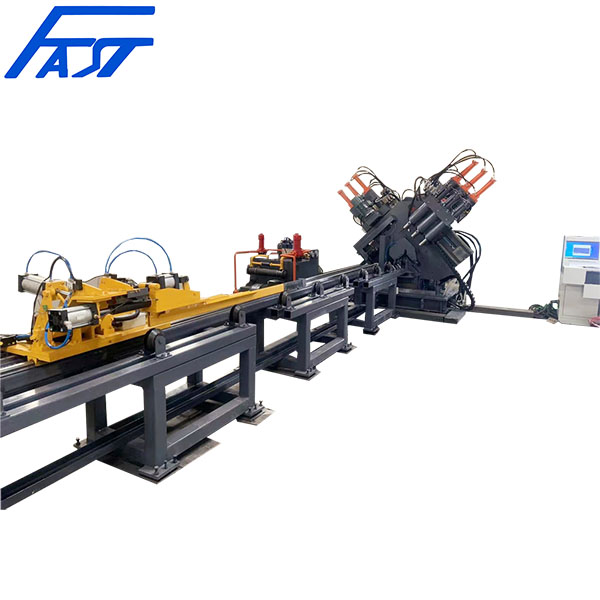

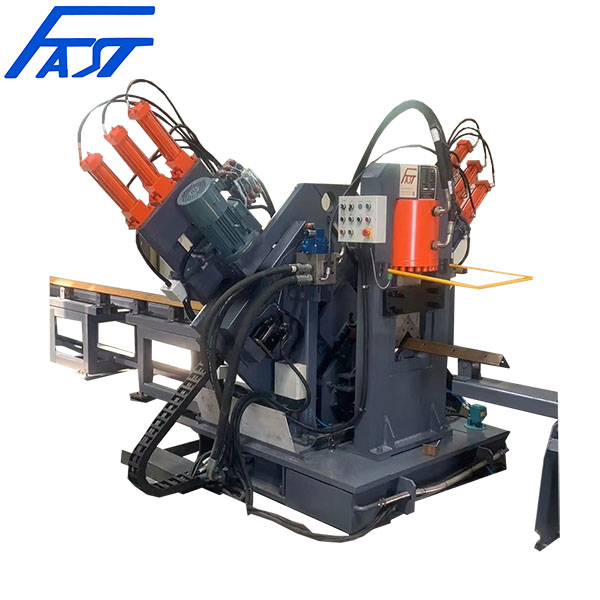

JX2532 Automatic CNC Drilling, Marking And Cutting Systems
APPLICABLE INDUSTRY
This machine is the automatic special production line used for angle steel drilling & marking，mainly in the field of angle steel tower industry.
COMPOSITION
Material platform
Cross feeding conveyor
CNC feeding trolley
CNC conveyor
CNC marking unit

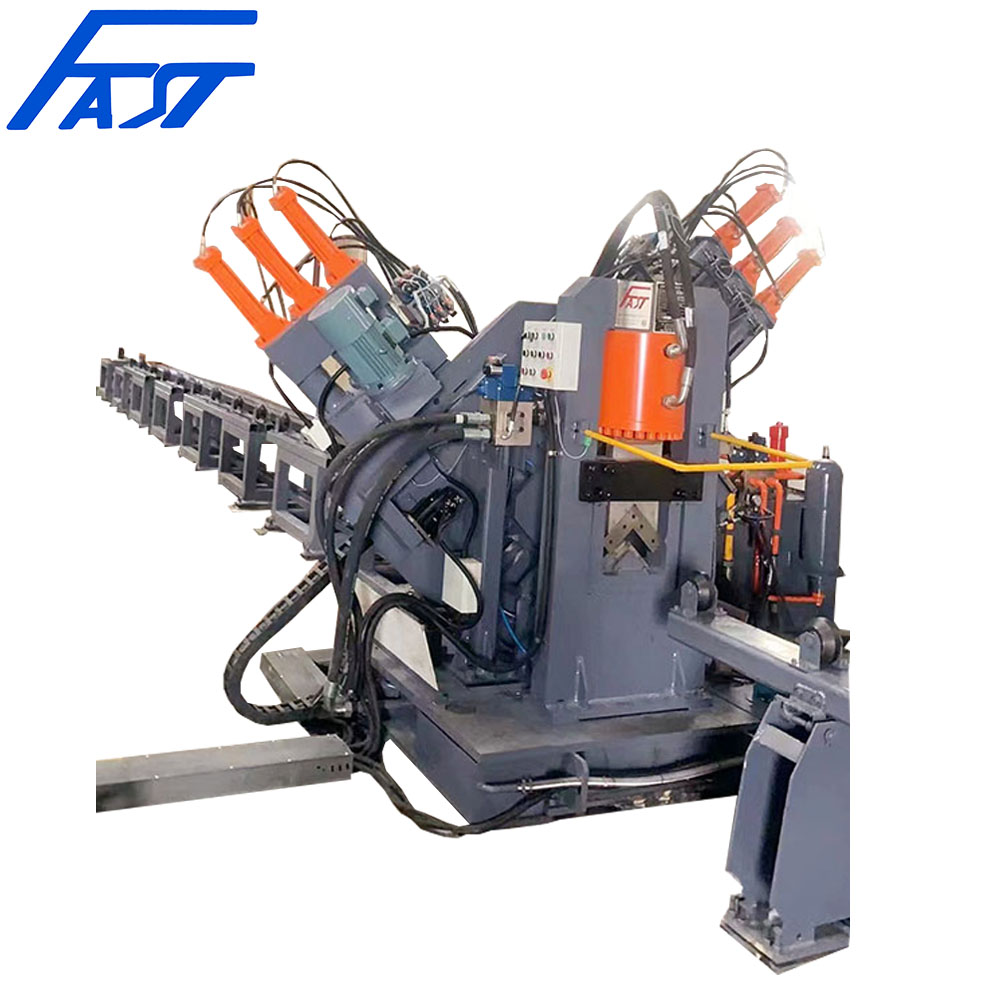

CNC punching unit
Retainer（supporting material）
CNC cutting unit
Outfeeding conveyor

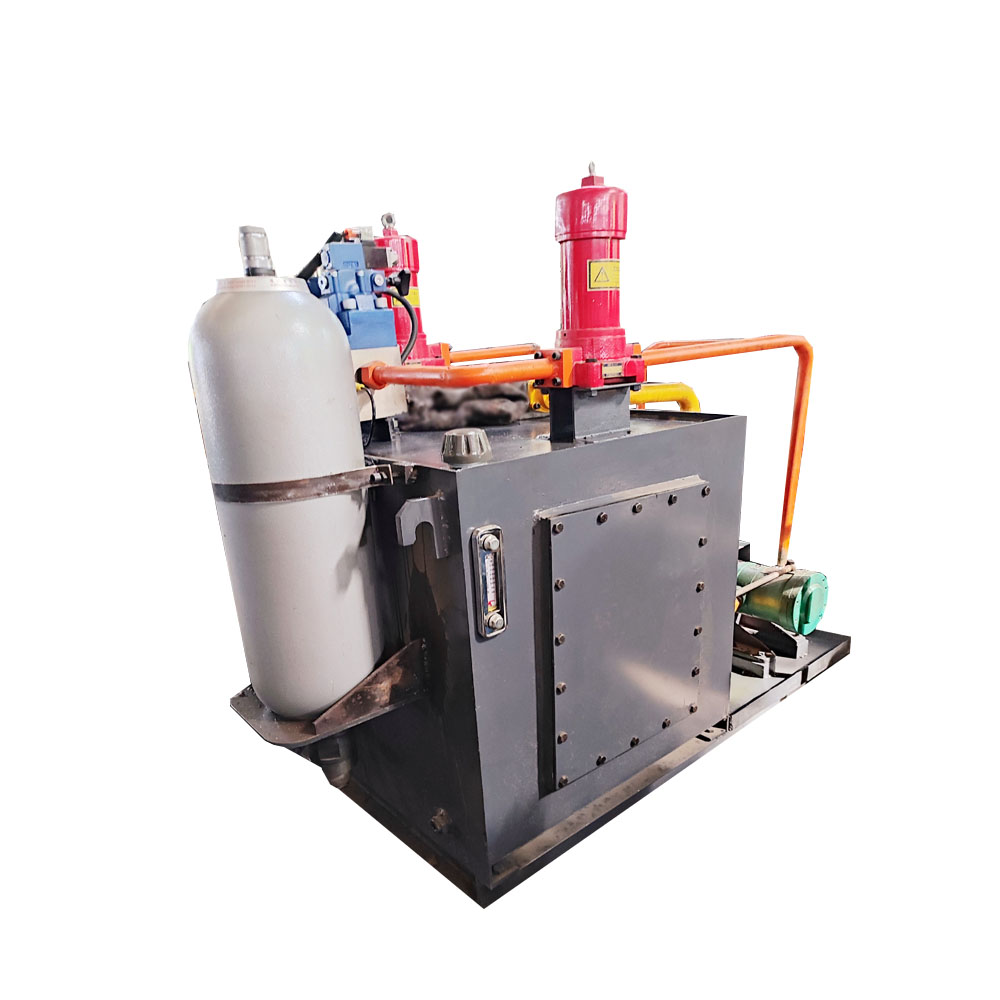

Hydraulic station

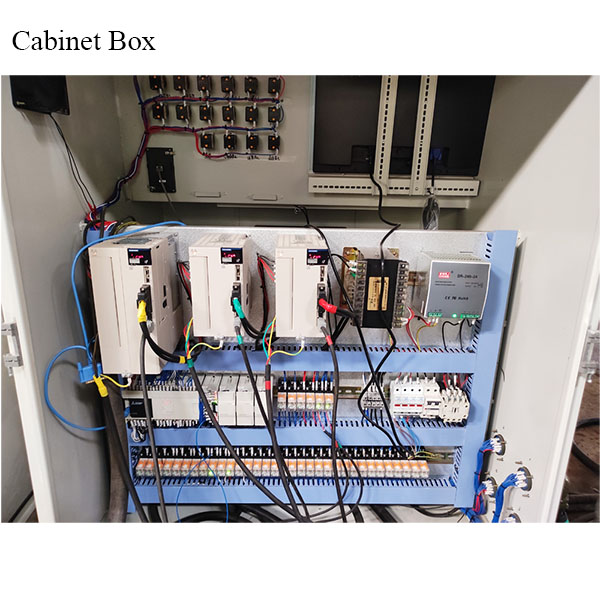

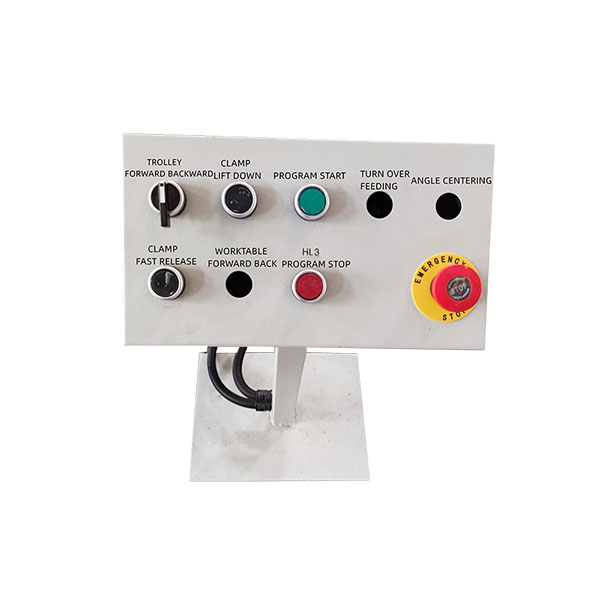

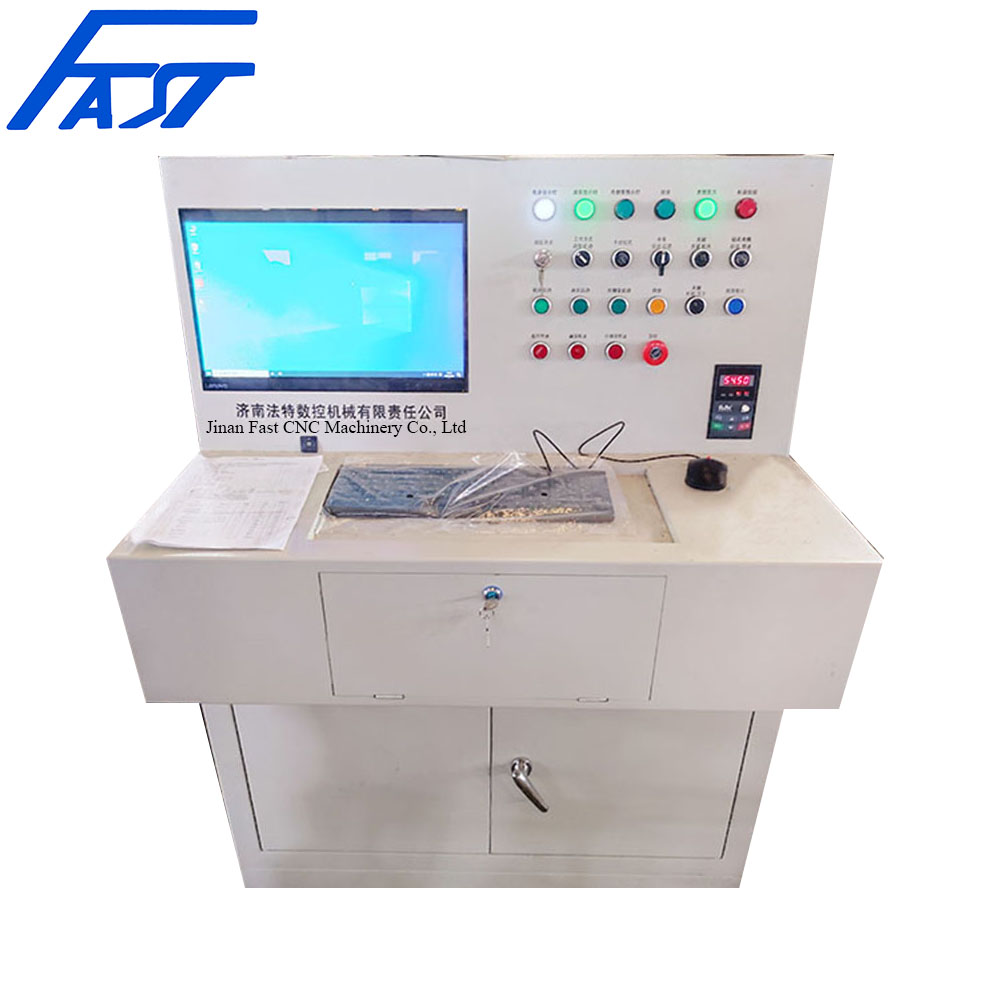

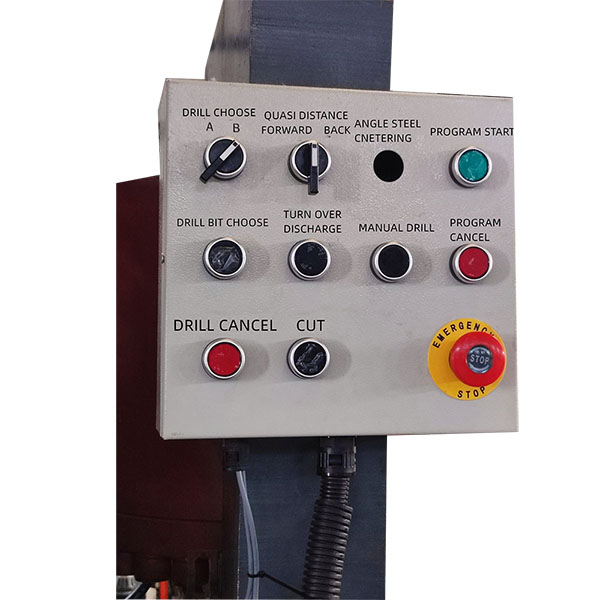

Controlling system
TECHNICAL DATA
Model
FJX2325
FJX363V
Angle Size (mm)
100*100*8~250*250*32
110*110*12~360*360*35
Marking Force (kN)
1000
1000
Max. Length of blank (m)
14
14
Max. Length of finished（m）
12
12
Qyt. of Drill On Each Side (Piece)
3
3
Qty. of character group
1
1
Qty. of Character in Each Character Group (Piece)
18
18
Character Size (mm)
14*10*20
14*10*20
Back mark (mm)
20~220
20~340
Spindle rotation speed (r/min)
180~760, Transducer stepless adjustment
180~760, Transducer stepless adjustment
Max. Feeding speed(m/min
)
40
40
Max. Drilling Diameter (mm)
Φ40
Φ40
Stroke of spindle (mm)
240
220
Qty. Of CNC Axes
3
3
Programming Mode
Lofting software of manual program
Working Accuracy
Accordance with GB2694-2003
Overall Dimension (m)
About 30*7*2.6
About 32*6.5*2.3m
Net Weight (kg)
17000
18800
FAQ
· Are you a Manufacturer or a Trading company？
Manufacturer + trading company （integration），focusing on CNC machines for 18 years. Integration with Design，Machining and Assembly.
Exporting to Russia，USA，Australia，Vietnam，Brazil，Ethiopia，Tunisia，Bulgaria，India，Indonesia，Jordan，Pakistan，etc
· Do you have stock product ready to delivery？
In order to satisfy with customer for fast delivery, we have certain amount of machines in stock.
· After an order is placed，when to delivery？
General 30 working days. It depends on specific items and item quantities.
Please check with sale manager for exact delivery time.
· What is the Warranty with After-sale Services？
12 months warranty after delivery. Engineers will provide training program for operation and trouble shouting during installation. They visit customers regularly for service. All questions will be answered within 3 hours and 90% problem will be solved within 24 hours.
After the warranty, the professional after-sale service team will provide perfect technical support and help customer solve problems encountered.
· What about the product quality？
Each machine must be carried out quality examination and test when shipping and delivery goods.
