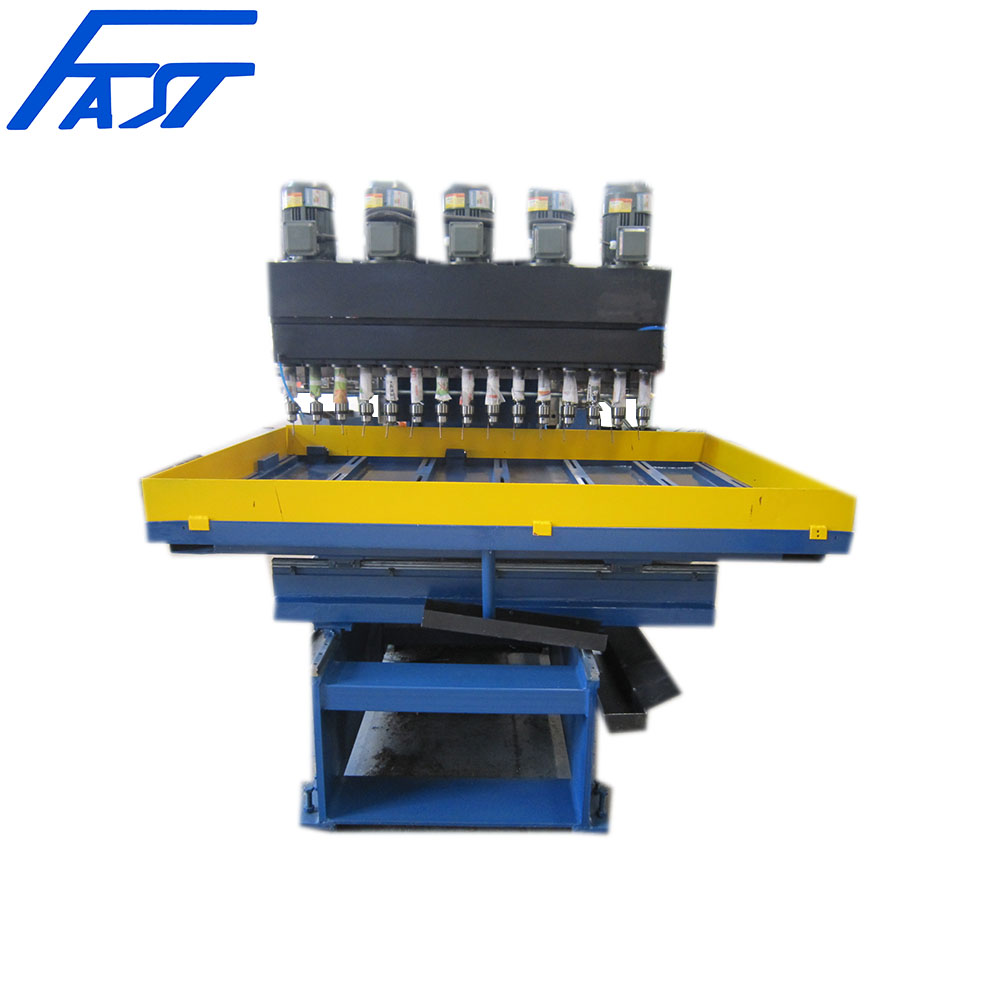

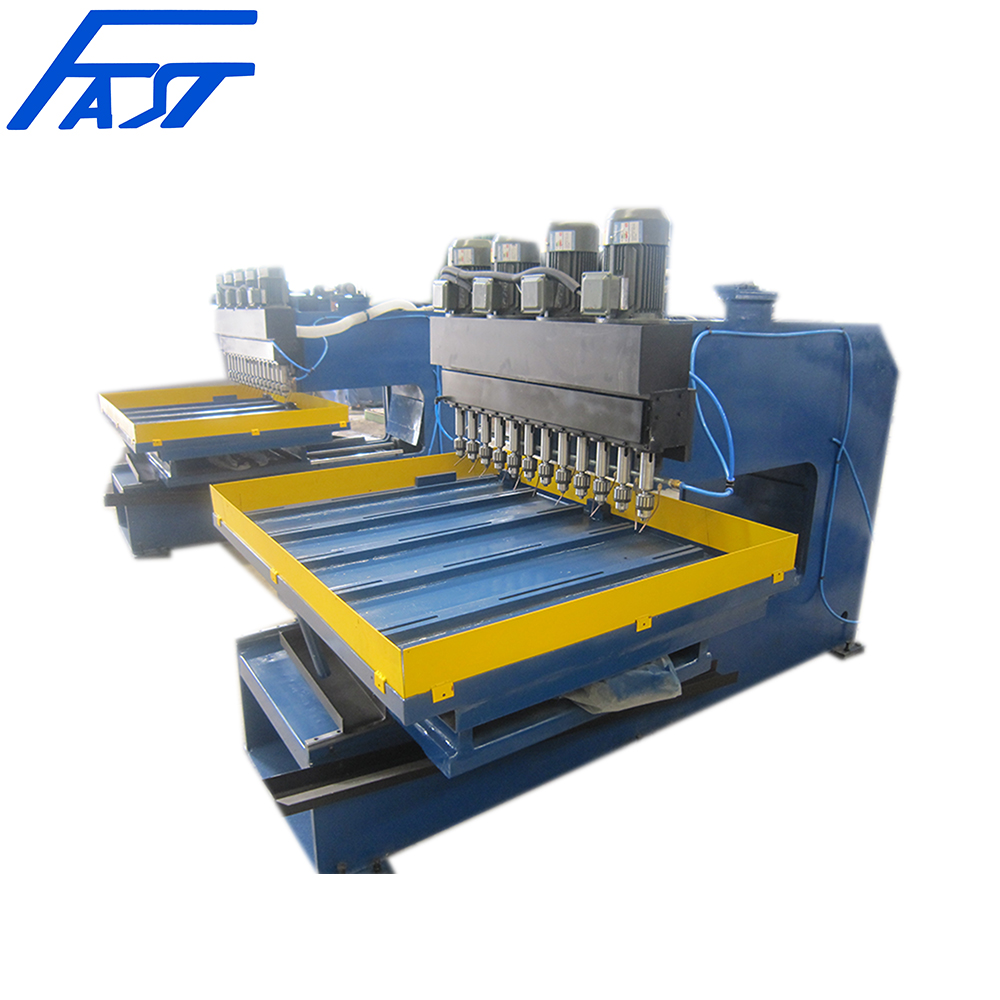

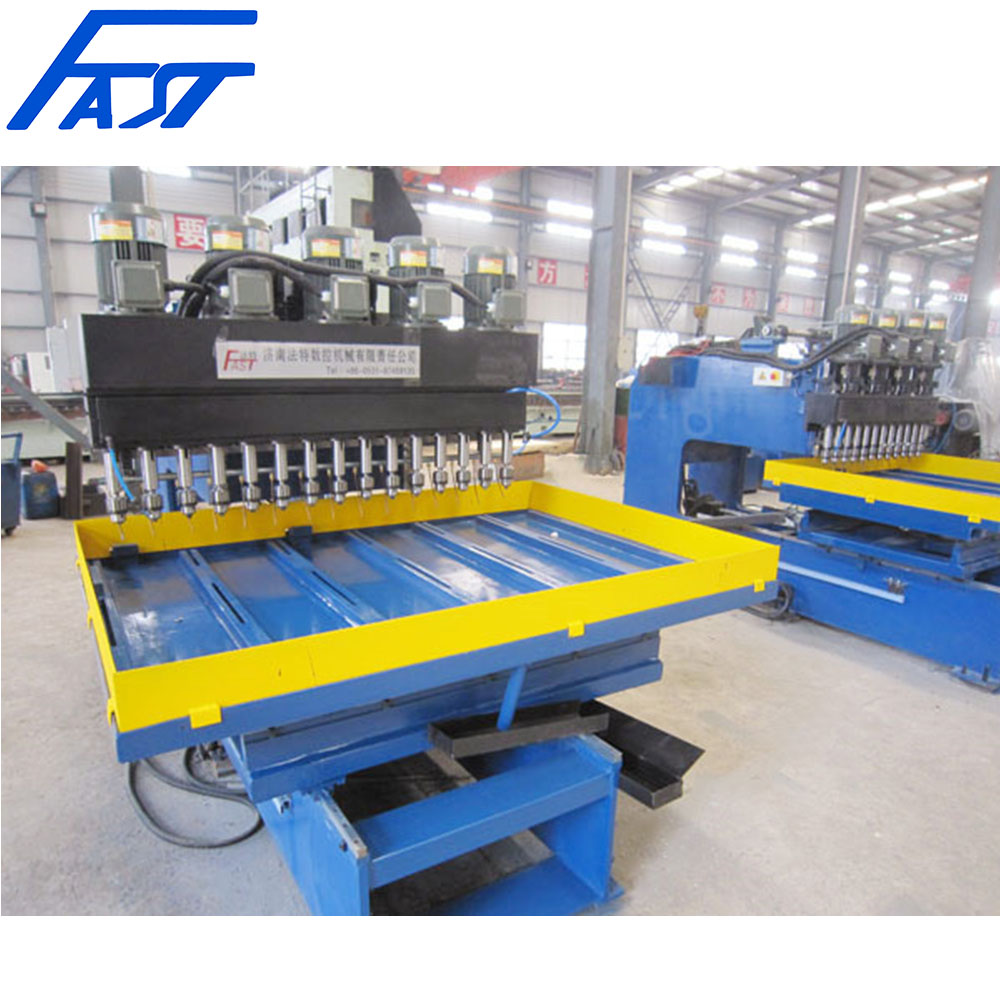

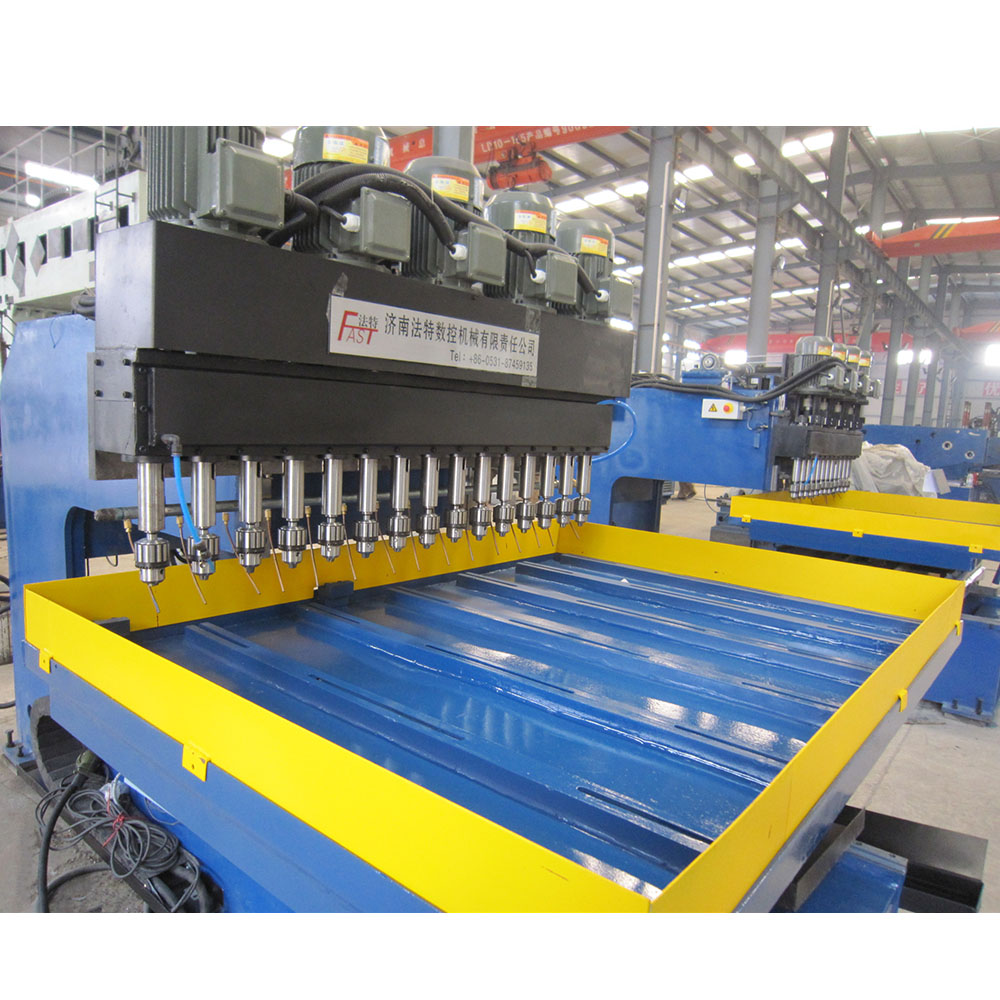

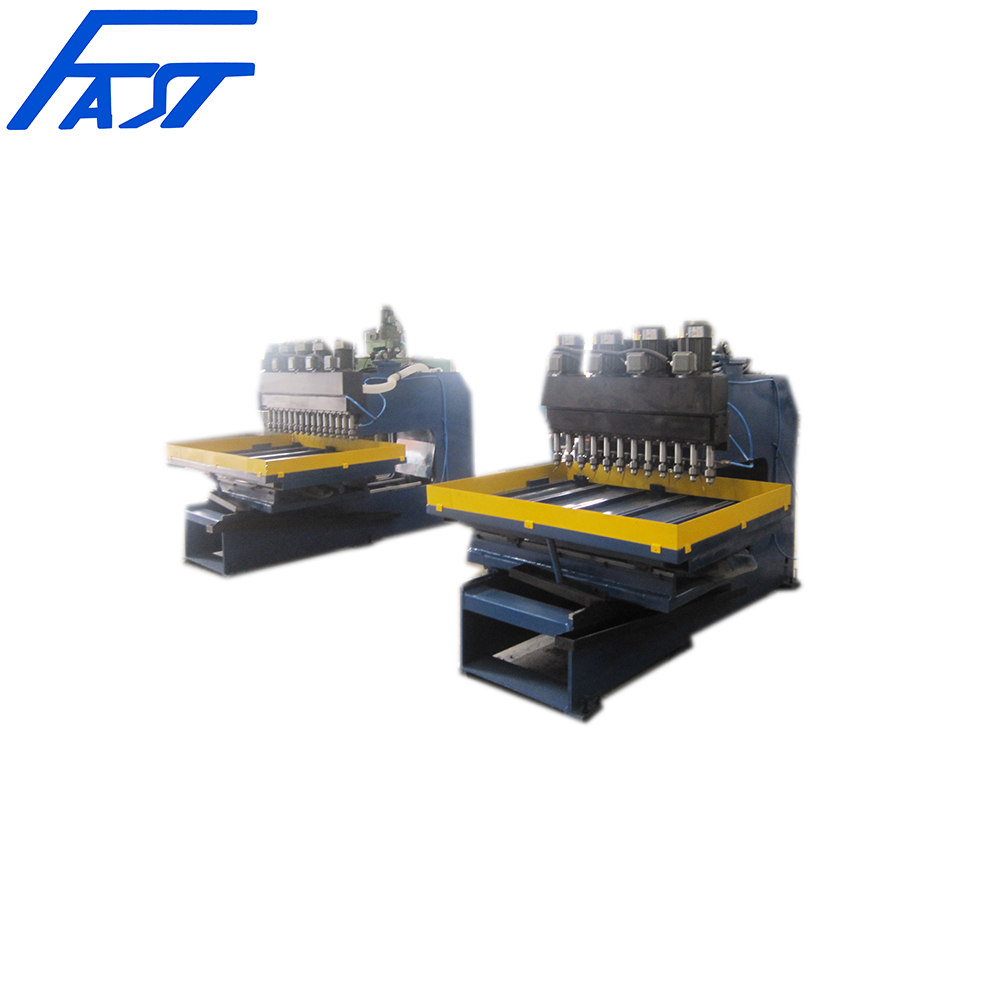

CNC Multi-spindle Sieve Plate Drilling Machine
APPLICATION

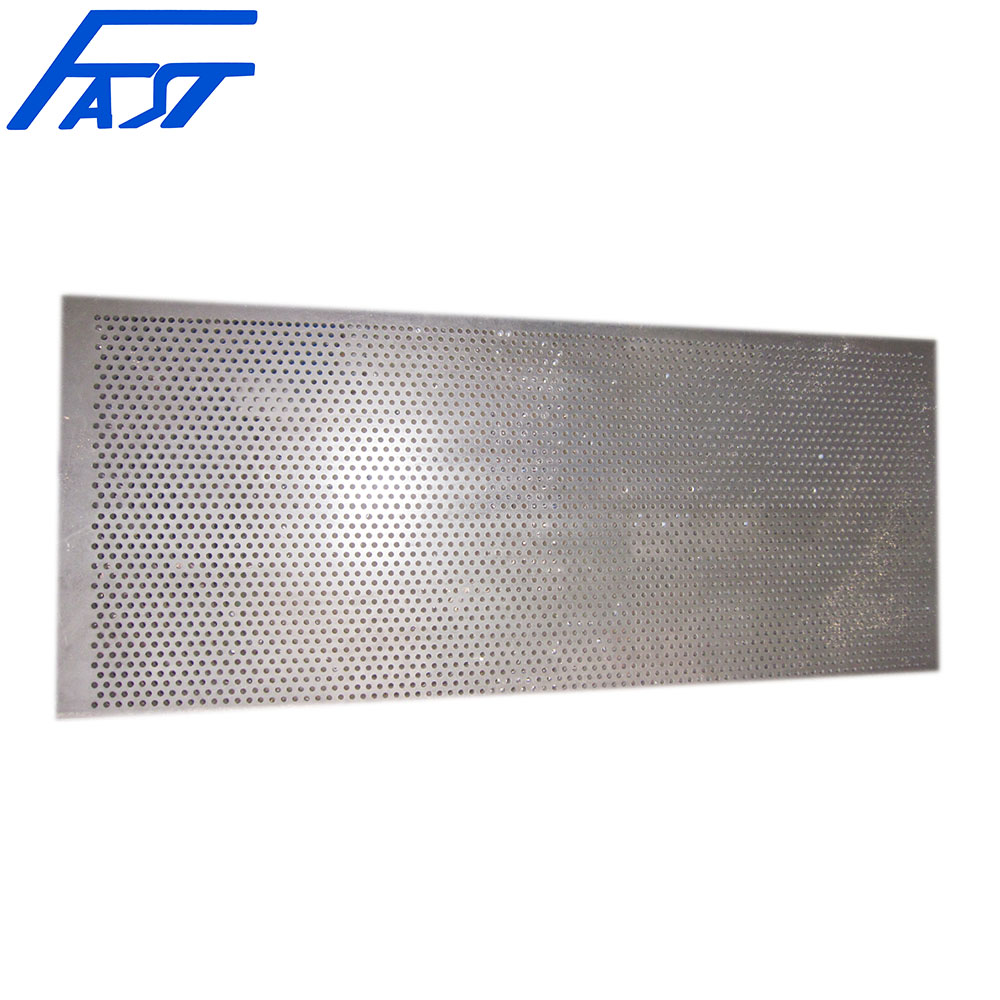

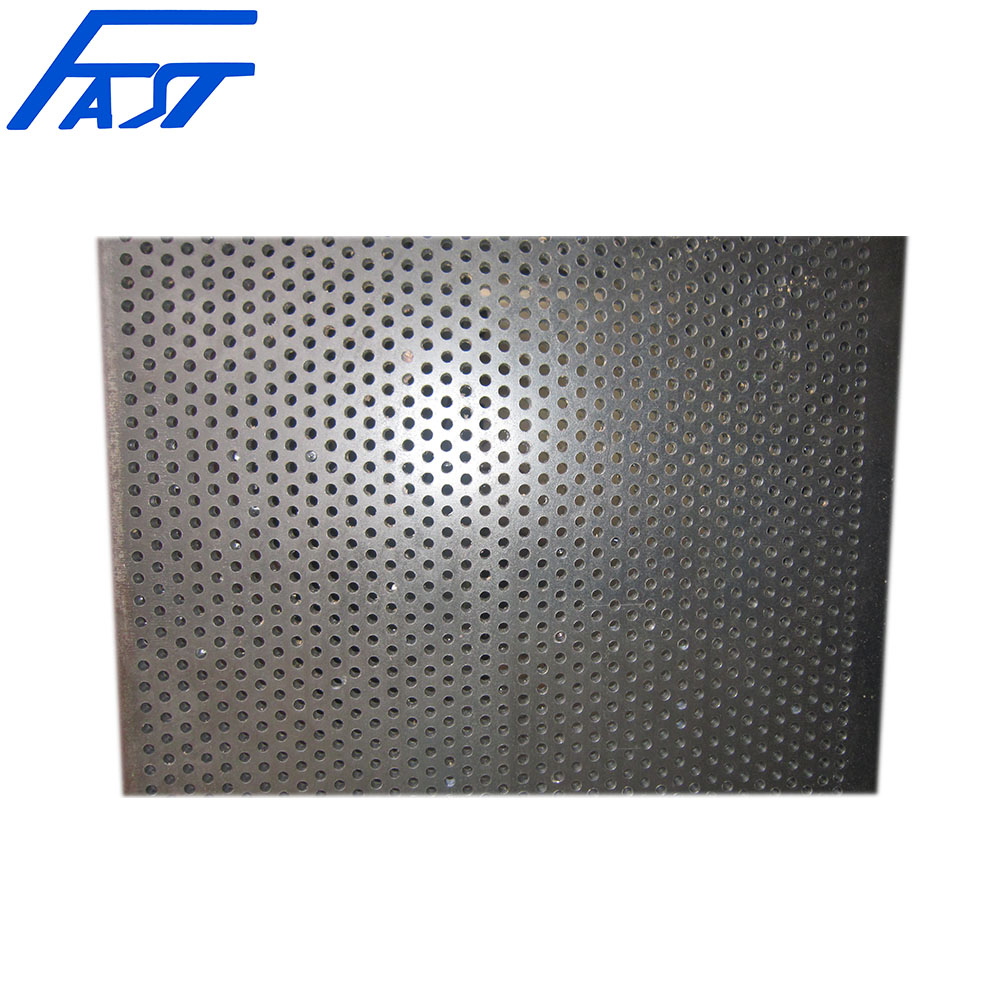

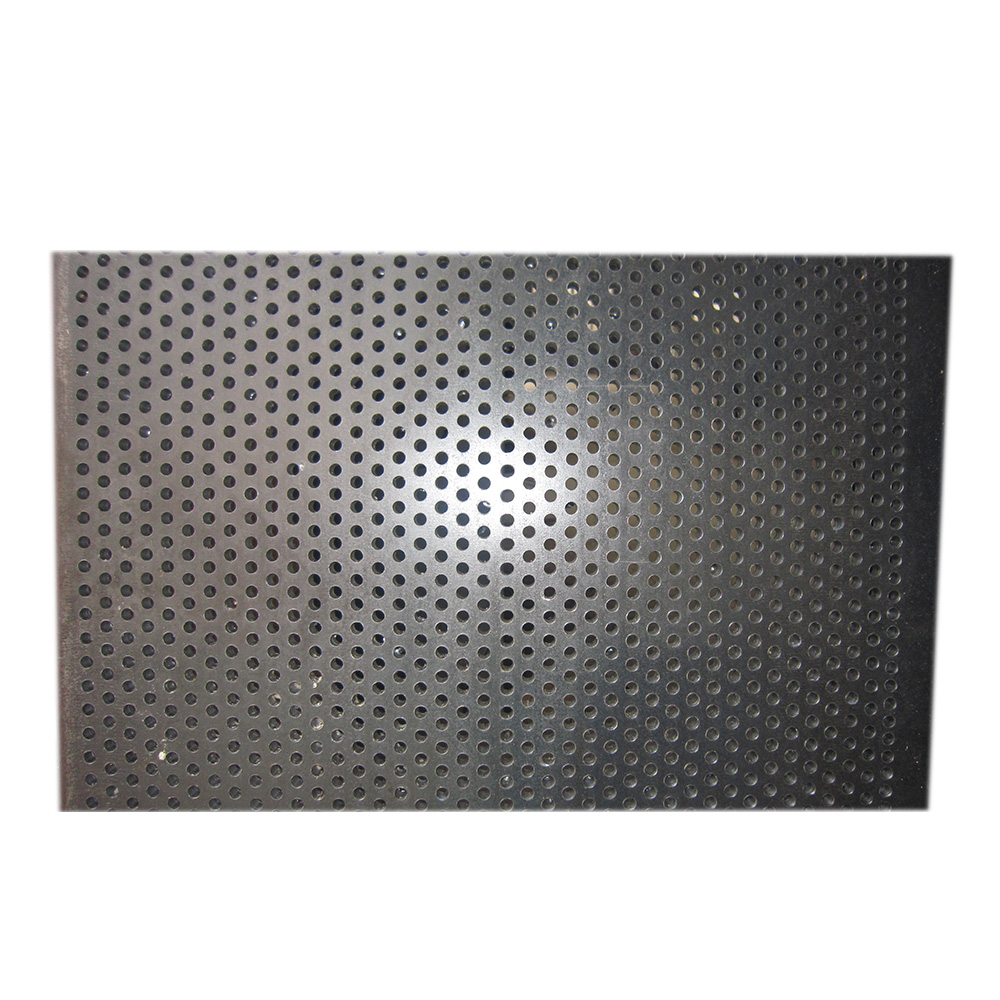

This machine is specially used for drilling machine for sieve plates. This machine is mainly used for high efficiency drilling of small holes on paper pulp sieve plates (stainless steel). The machine can equip with one or several high-speed drilling spindle.
COMPOSITION

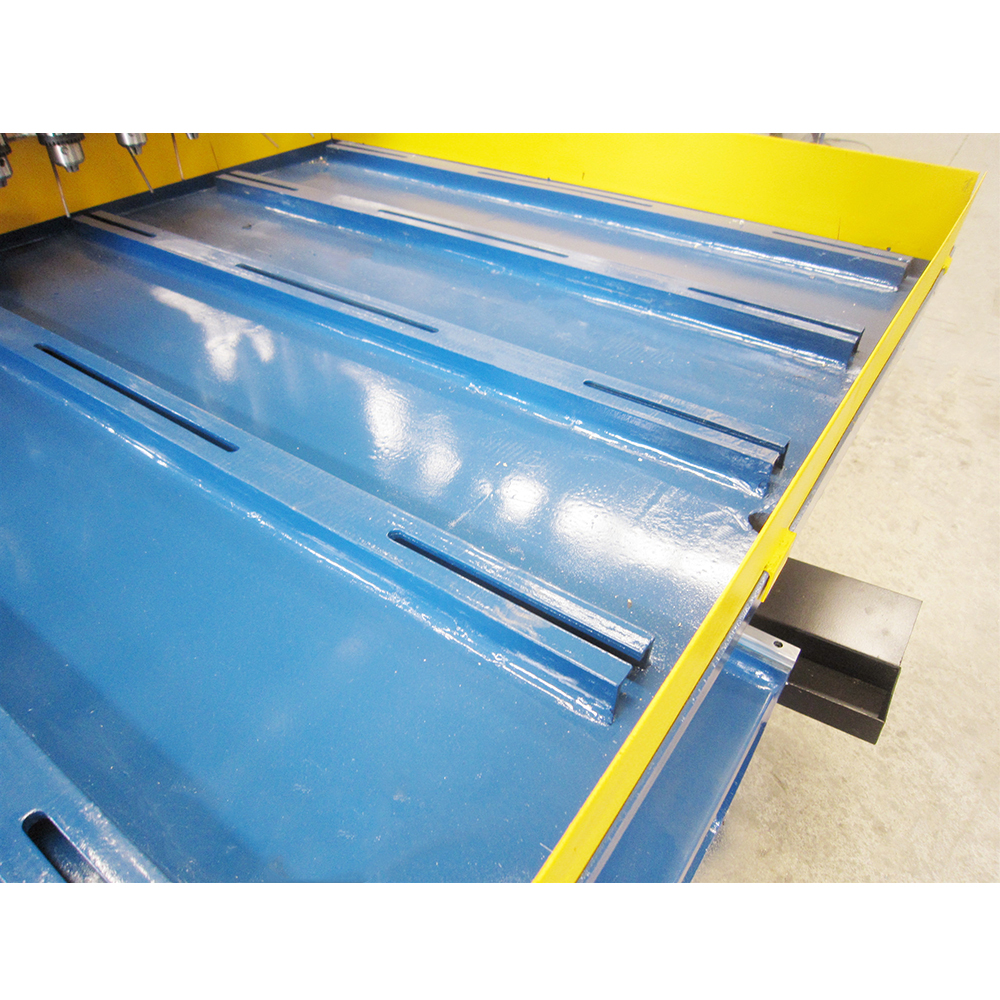

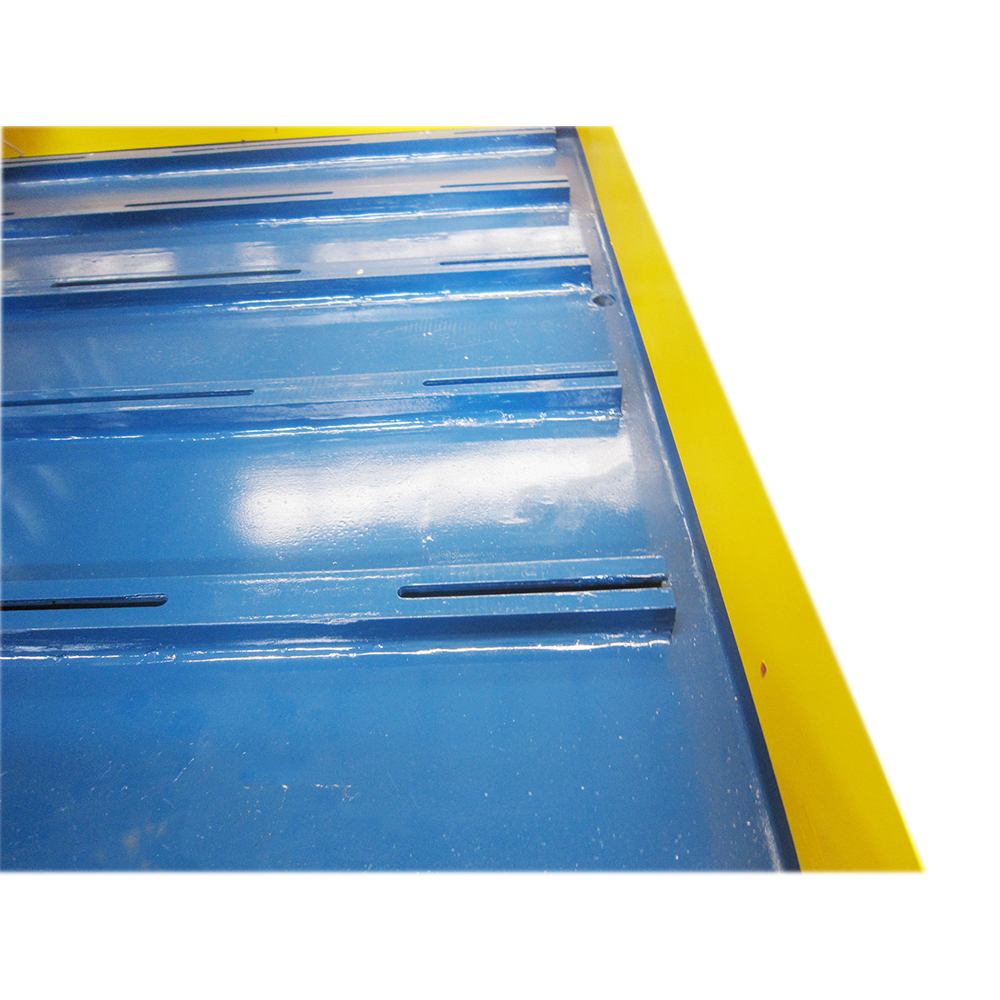

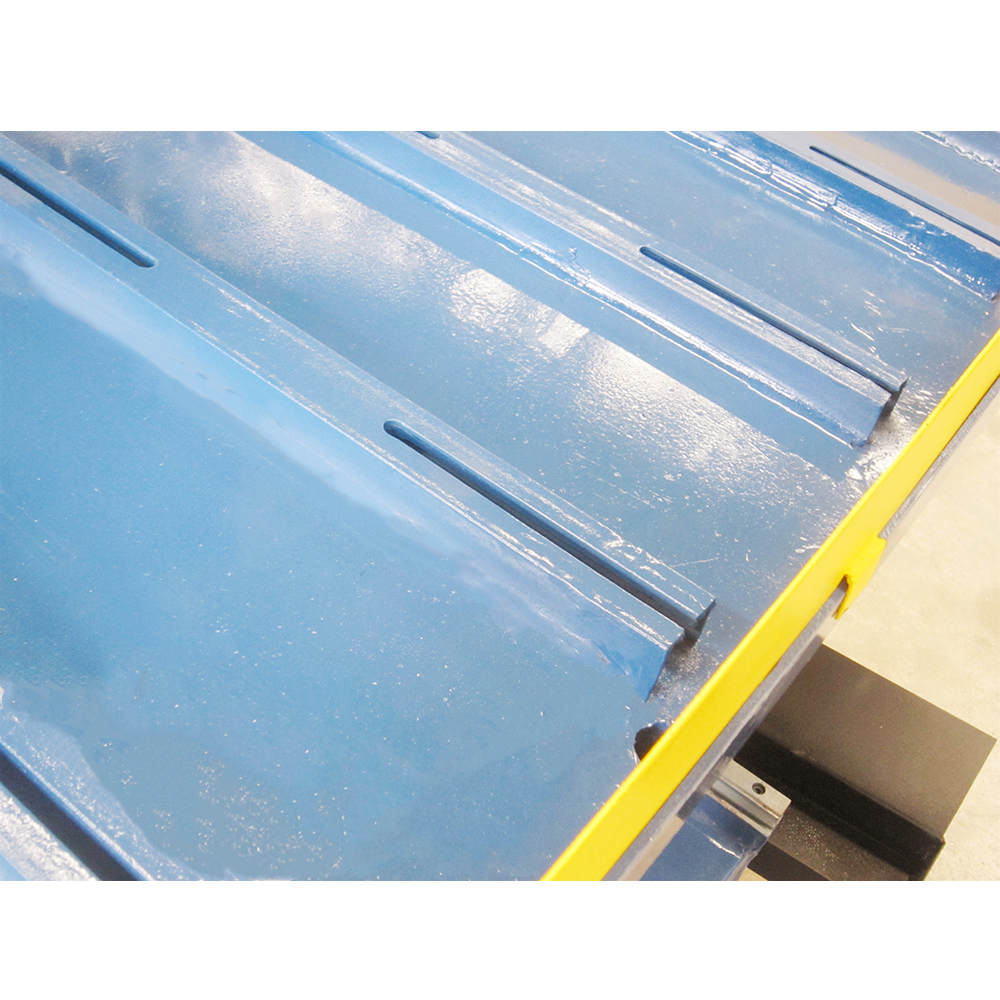

Fixed bed worktable
Movable gantry
Vertical sliding plate

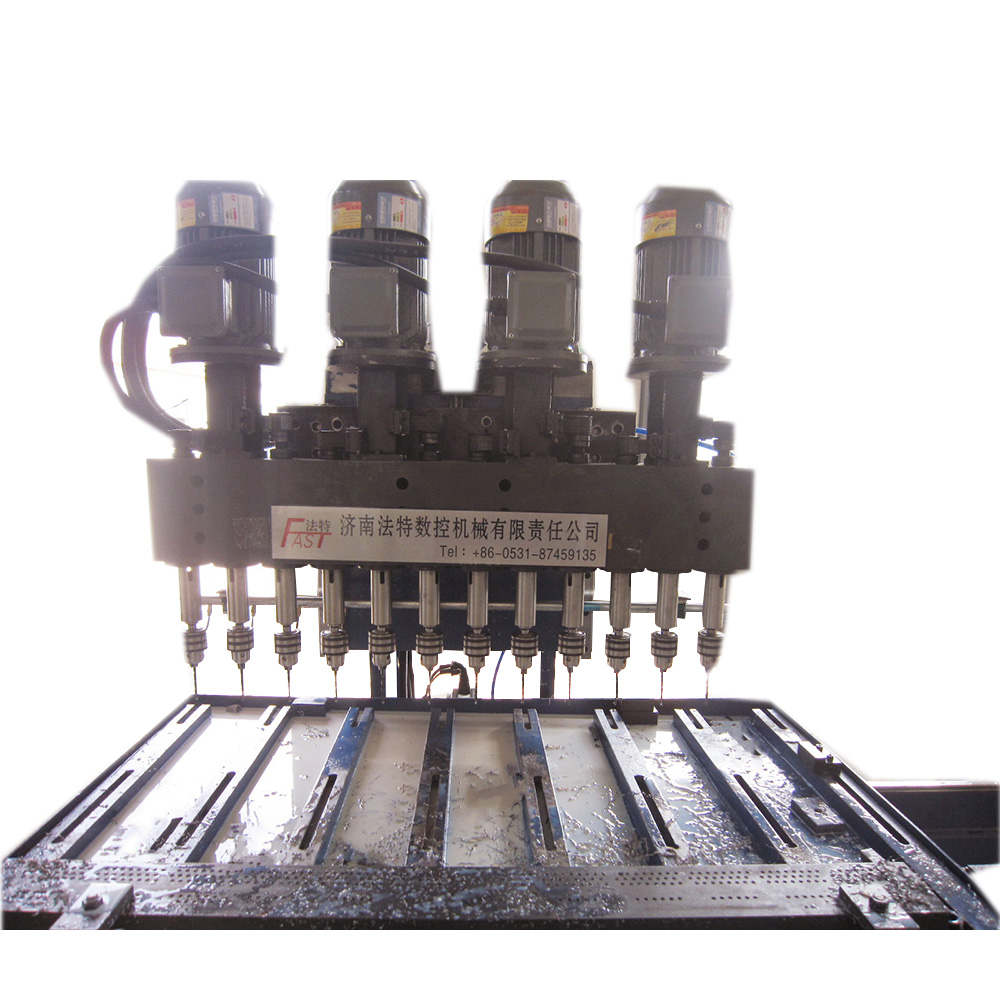

Drilling heads
Cooling system
Automatic lubrication system
Controlling system
TECHNICAL DATA
Model
PZS1208-12
PZS1508-15
Max. Workpiece Dimension (mm)
1200*800
1500*800
Distance between the bottom of the spindle to work table (mm)
100~320
100~320
Range of Drilling Diameter
Φ3~Φ10
Φ3~Φ10
Type of Drilling Head
Servo motor Drilling head
Drilling Speed (mm/min)
50~220 （for common steel）
30~120 （for stainless steel plate）
Quantity of Drilling Motor
4
5
Drilling Axis
12
15
Morse Taper
3#
3#
Motor power of Drilling Head (kW)
2.2
2.2
Rotating Speed of Spindle (r/min)
300~2800
300~2800
Vertical Stroke of Z Axis (mm)
220
220
Z Axis Servo Motor Power (kW)
1.0
1.2
Stroke of X Axis (mm)
800
800
X Axis Servo Motor Power (kW)
1.0
1.0
Stroke of Y Axis (mm)
1200
1500
Y Axis Servo Motor Power (kW)
1.0
1.0
Quantity of CNC Axis
3
3
Net Weight (kg)
3000
3500
★ All of these models can be customized according to customer requirements.
FAQ
· Are you a Manufacturer or a Trading company？
Manufacturer + trading company （integration），focusing on CNC machines for 18 years. Integration with Design，Machining and Assembly.
Exporting to Russia，USA，Australia，Vietnam，Brazil，Ethiopia，Tunisia，Bulgaria，India，Indonesia，Jordan，Pakistan，etc
· Do you have stock product ready to delivery？
In order to satisfy with customer for fast delivery, we have certain amount of machines in stock.
· After an order is placed，when to delivery？
General 30 working days. It depends on specific items and item quantities.
Please check with sale manager for exact delivery time.
· What is the Warranty with After-sale Services？
12 months warranty after delivery. Engineers will provide training program for operation and trouble shouting during installation. They visit customers regularly for service. All questions will be answered within 3 hours and 90% problem will be solved within 24 hours.
After the warranty, the professional after-sale service team will provide perfect technical support and help customer solve problems encountered.
· What about the product quality？
Each machine must be carried out quality examination and test when shipping and delivery goods.
