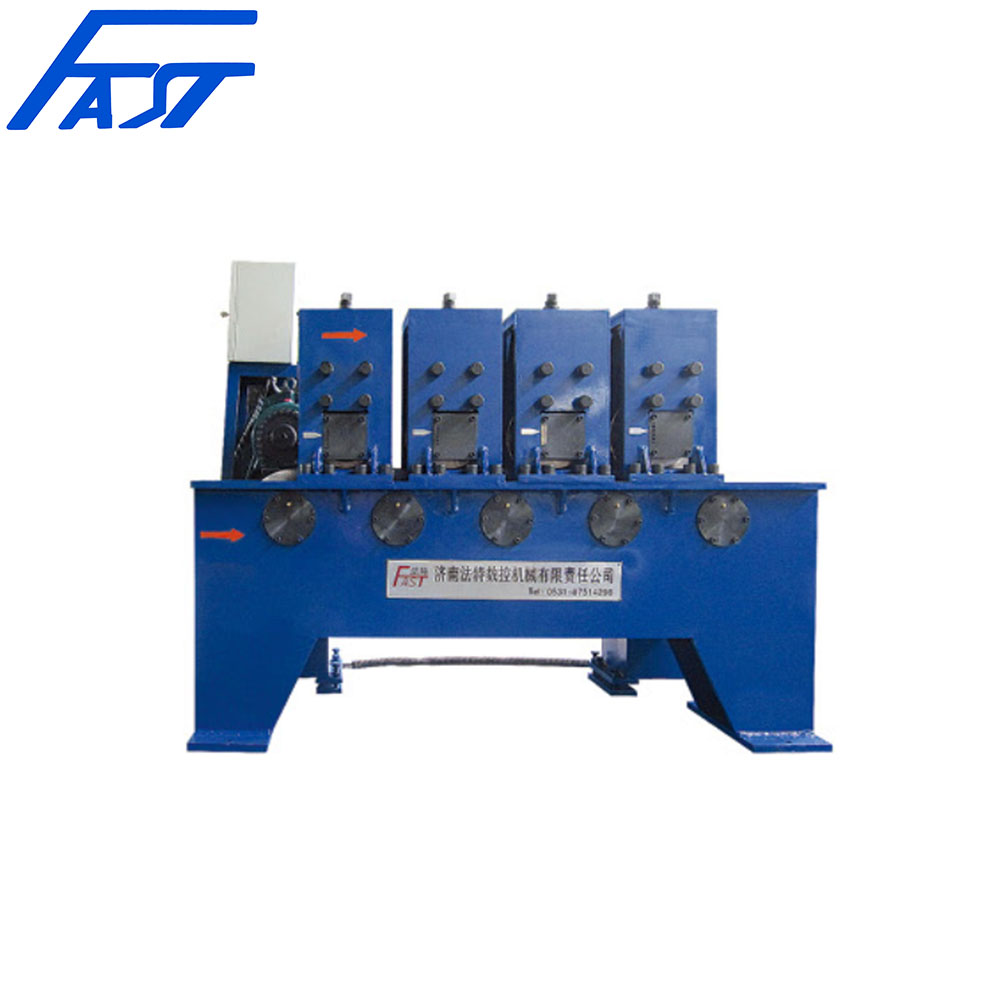

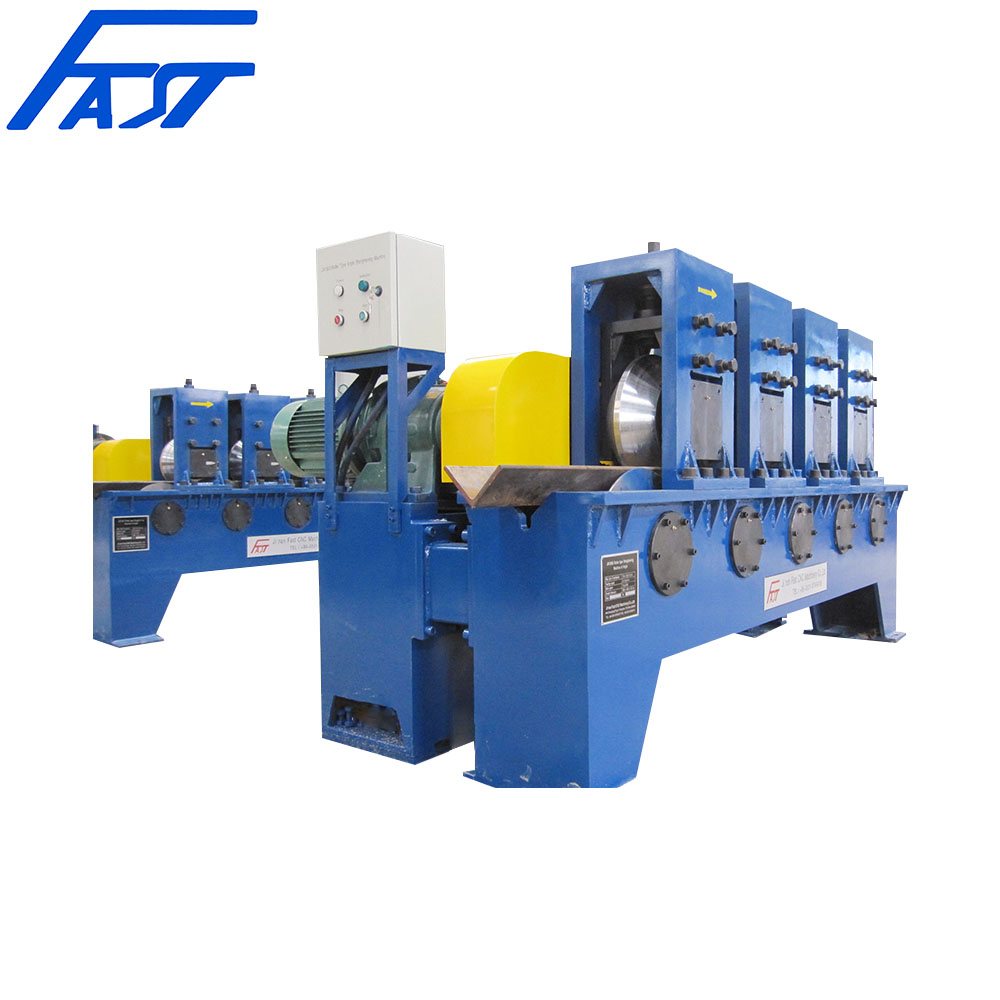

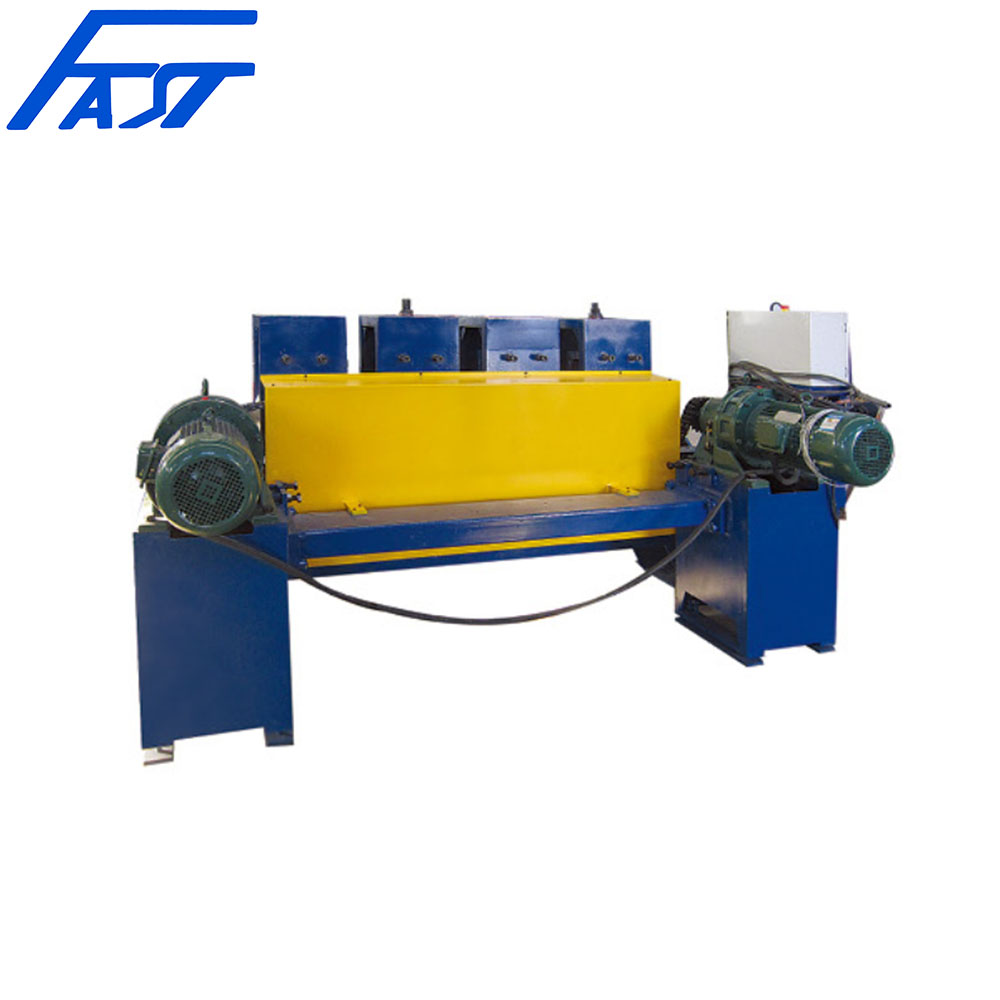

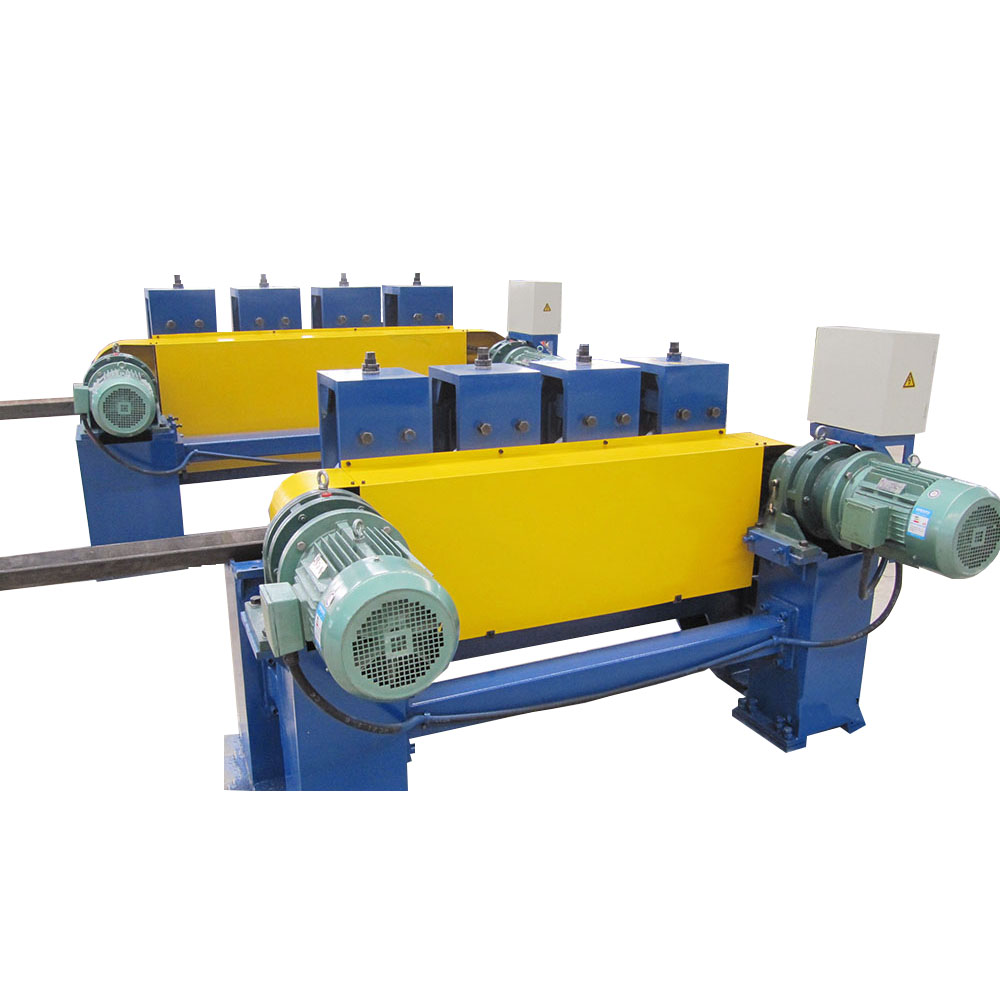

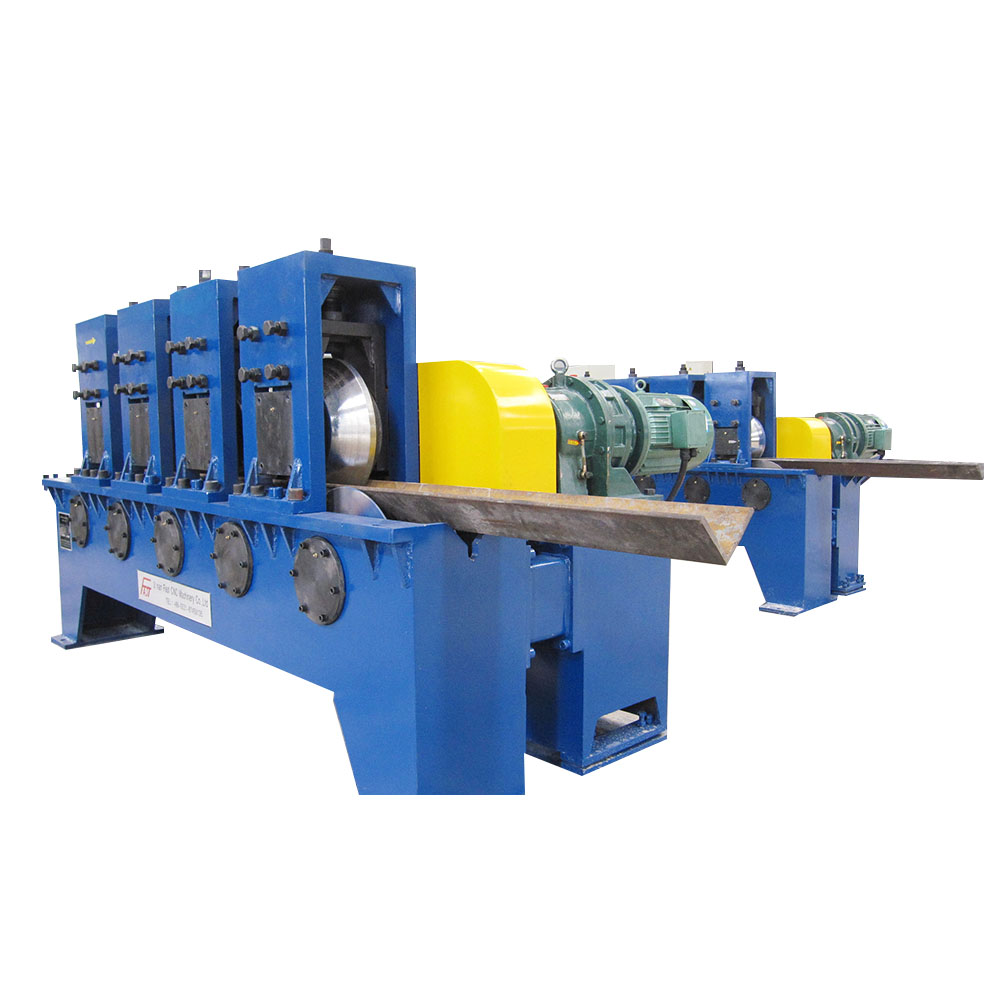

Hydraulic Angle Straghtening Mahchine Roller Type Model JXG100G/125G/130G

Adjust the equipment according to the different thickness of angles at the top the nuts. According to the scale label roll angle to make upper and lower in mold safety contact. Lock the top of the nut, press the start button. The starter motor from mould roller rotation, lower die roller diver angle to the host unit. Straightening the angles and taking finished workpieces away.

JX125G roller type angle straightening machine Main technical Data

1、Function：straightening angles, roller 9 pieces

2、Max . Straightening angles size：50×50×5-130×130×12 mm

3、Feeding speed： 25-30m/min

4、Transmission: Mechanical transmission, can fit to different size and thickness of angles.

5、Motor Power：22KW

6、Total Weight：4500Kg

7、Machine dimension size(L* W* H)：2600X1380X1470 mm

JX100G Roller Type Angle Straightening Machine Technical Data

1、Function：straightening angles, roller 9 pieces.

2、Max . Straightening angles size：40×40×4-100×100×10mm

3、Feeding speed： 20-25m/min

4、Transmission: Mechanical transmission, can fit to different size and thickness of angles

5、Total Weight：2500Kg

6、Machine dimension size(L* W* H)：1940×1100×1250 mm

JX70G Roller Type Angle Straightening Machine Technical Data

1、Function：straightening angles, roller 9 pieces.

2、Max . Straightening angles size： 30×30×3-70×70×7 mm

3、Feeding speed： 20-25m/min

4、Transmission: Mechanical transmission, can fit to different size and thickness of angles

5、Total Weight：1500Kg

6、Machine dimension size(L* W* H)：1680×1000×1170 mm

Parts Instructure

1、Bearing：Chinese Famous Brand

2、Feeding reducer：Chinese Famous Brand

3、Chains: Chinese Famous Brand

4、Electrical: Japan MITSUBISHI

FAQ

· Are you a Manufacturer or a Trading company？

Manufacturer + trading company （integration），focusing on CNC machines for 18 years. Integration with Design，Machining and Assembly.

Exporting to Russia，USA，Australia，Vietnam，Brazil，Ethiopia，Tunisia，Bulgaria，India，Indonesia，Jordan，Pakistan，etc

· Do you have stock product ready to delivery？

In order to satisfy with customer for fast delivery, we have certain amount of machines in stock.

· After an order is placed，when to delivery？

General 30 working days. It depends on specific items and item quantities.

Please check with sale manager for exact delivery time.

· What is the Warranty with After-sale Services？

12 months warranty after delivery. Engineers will provide training program for operation and trouble shouting during installation. They visit customers regularly for service. All questions will be answered within 3 hours and 90% problem will be solved within 24 hours.

After the warranty, the professional after-sale service team will provide perfect technical support and help customer solve problems encountered.

· What about the product quality？

Each machine must be carried out quality examination and test when shipping and delivery goods.
