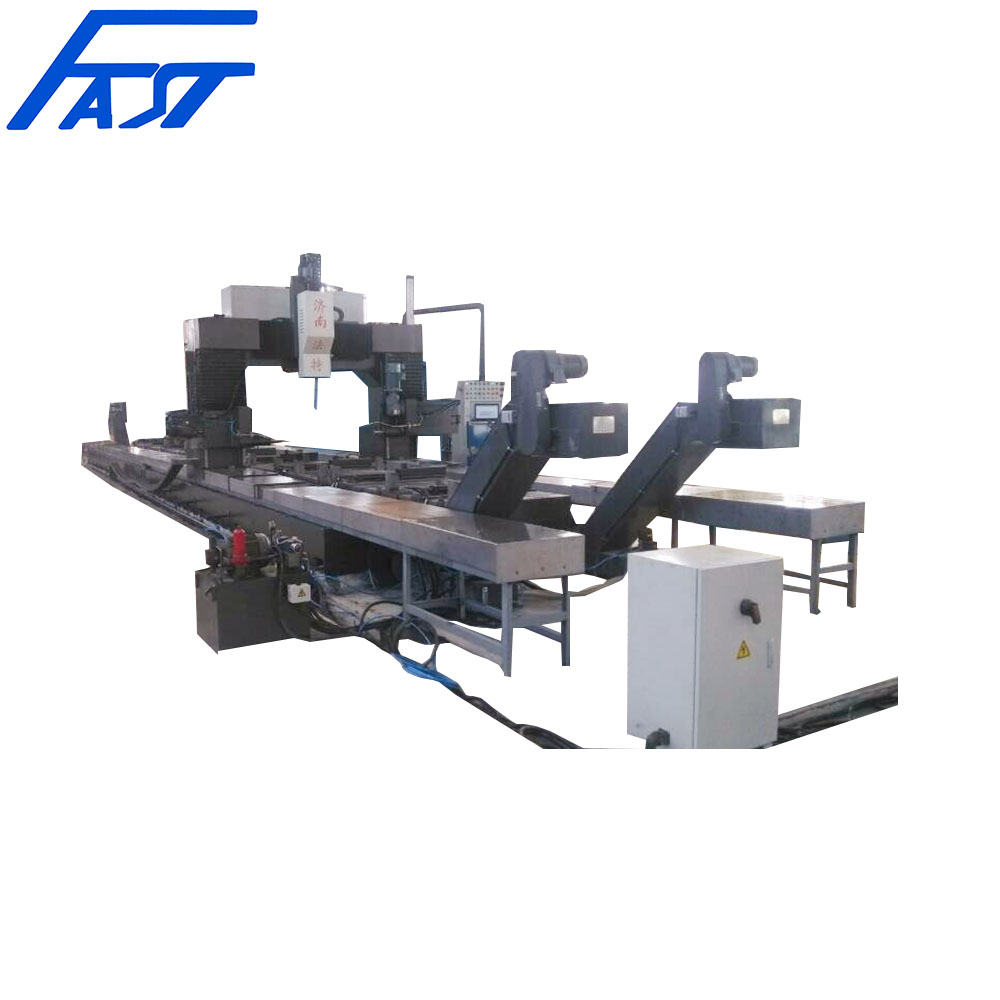

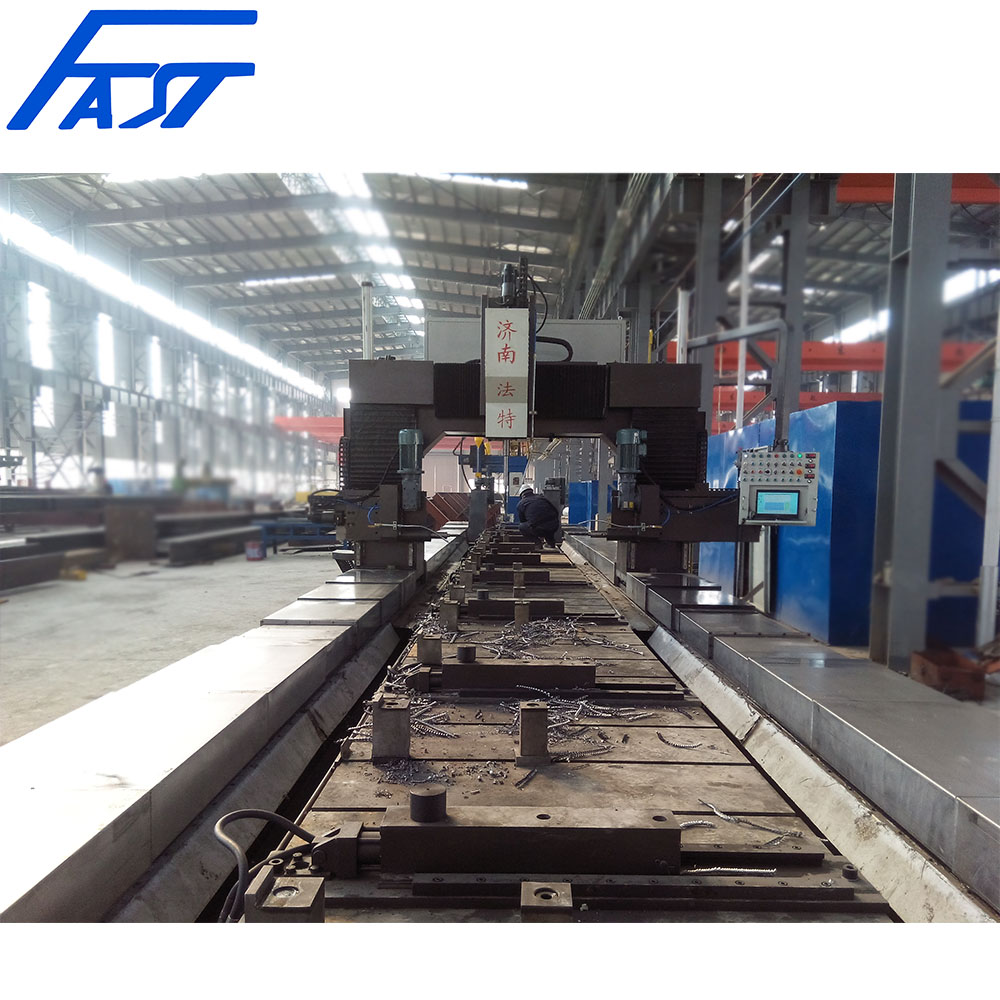

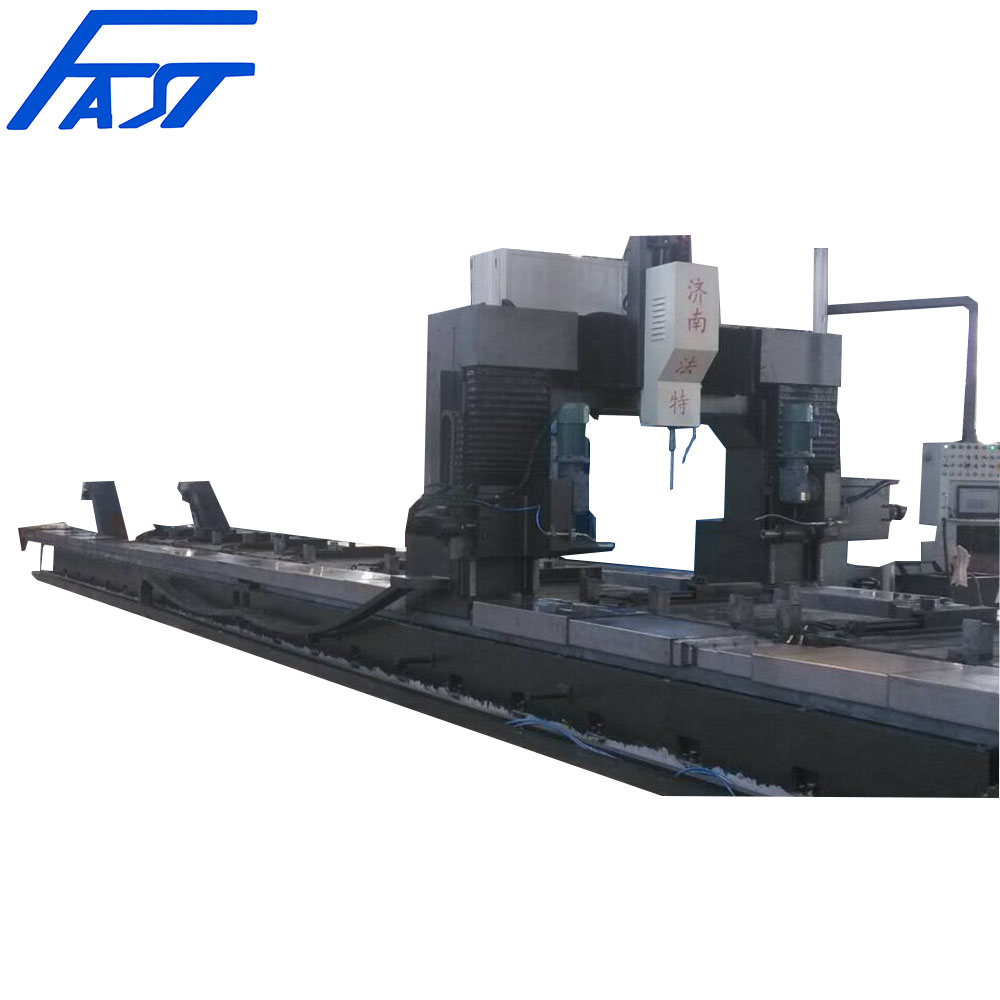

SWA Series Movable Gantry type CNC Beam Drilling Machine
APPLICATION

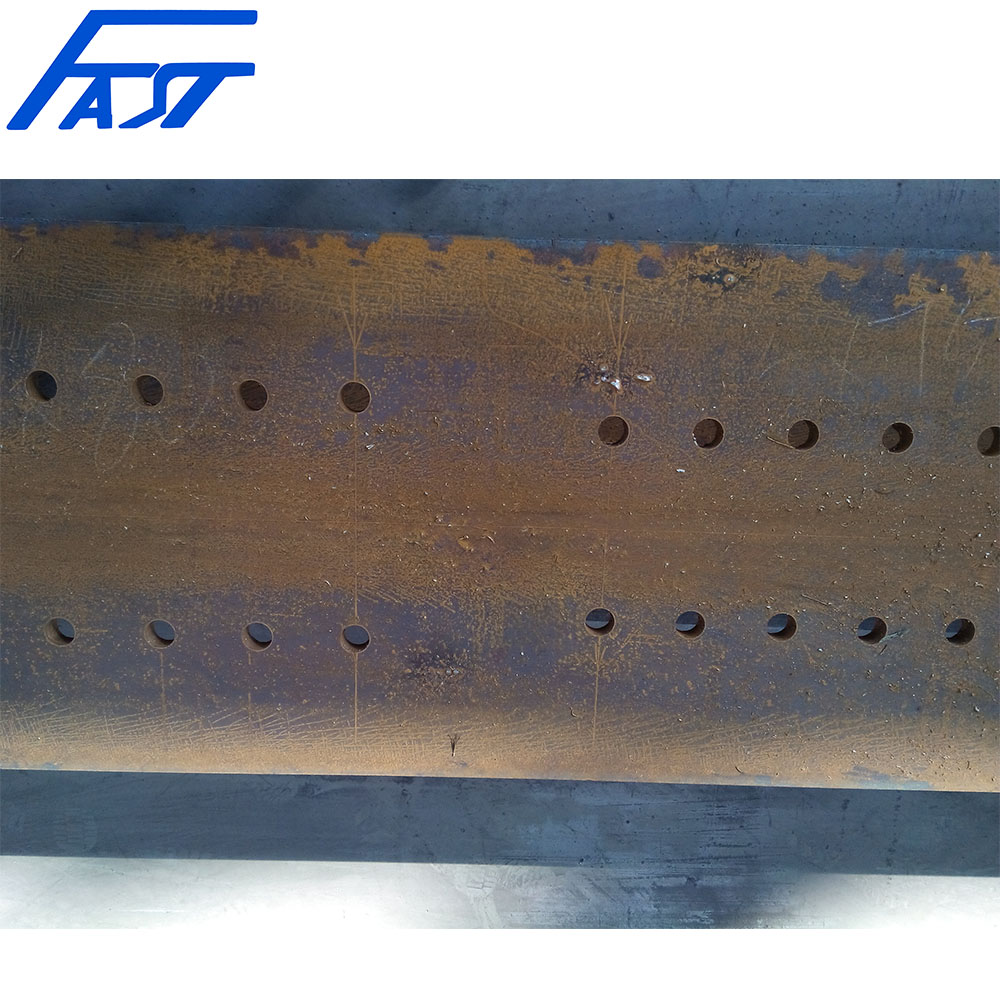

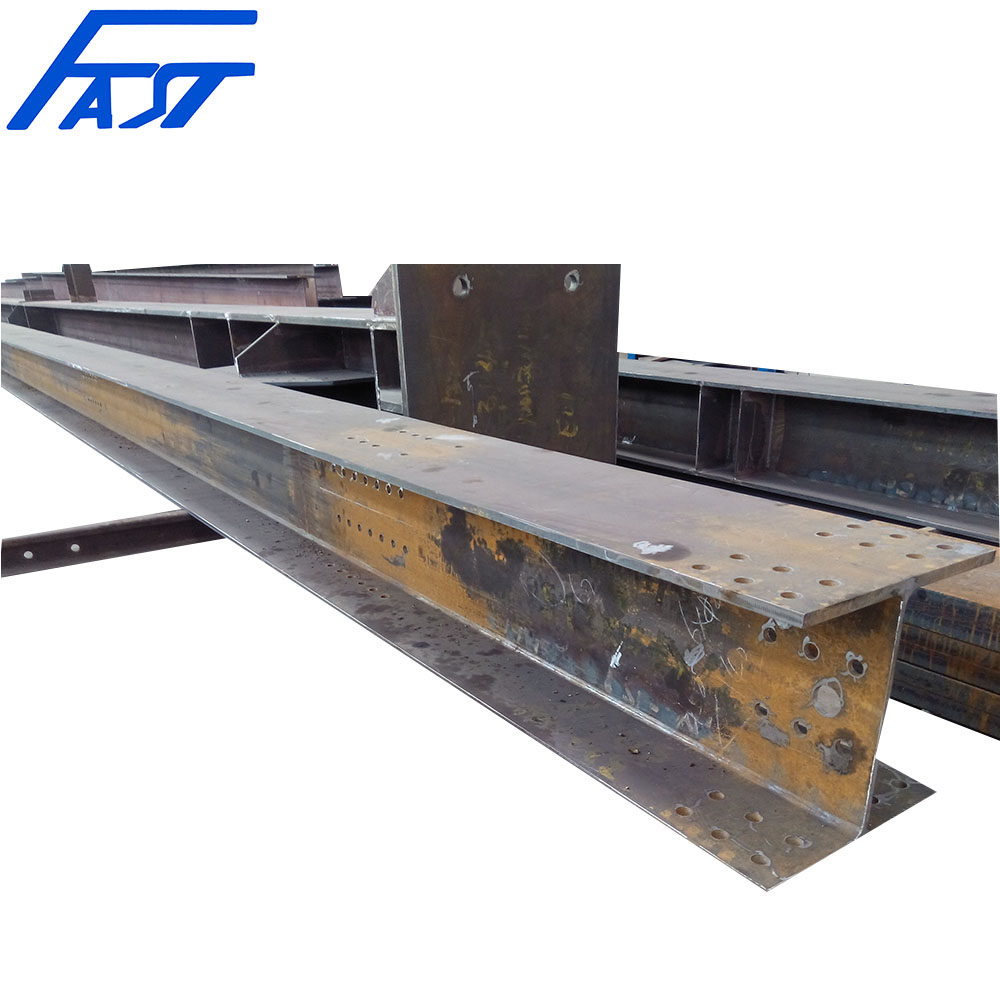

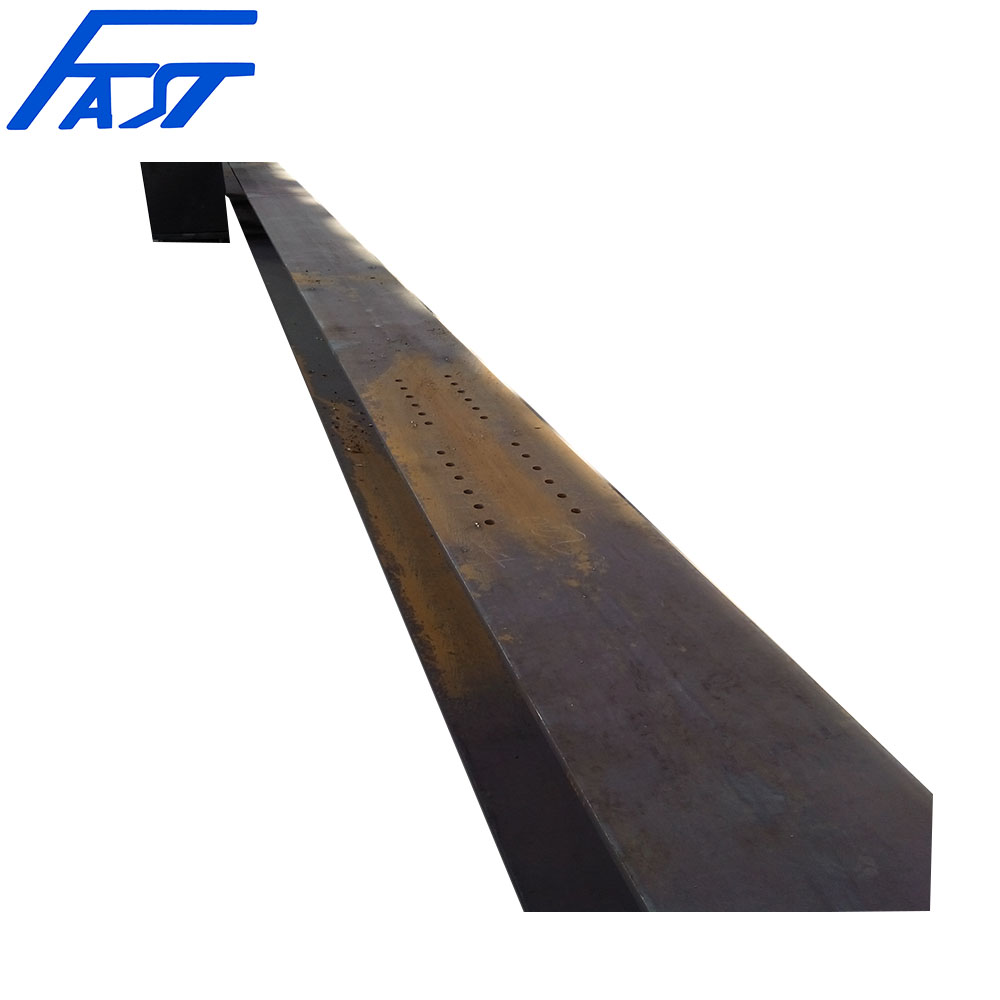

This machine is mainly used for drilling of large size welding H-beam, also can be used for drilling of rectangle, U type, L type. It can finish drilling of holes on three sides of H-beam at once, with high working efficiency& high precision. It is of necessary quality guarantee equipment of related manufacturing industry.
TECHNICAL DATA
Parameters
Unit
Parameter values
Parameter of work piece
Section(W×H)mm
mm
300×300—1000×1000
Max length mm
mm
16000
Max drilling thickness mm
mm
100
Max weight of work piece t
t
30
Spindle
Quantity of spindle
Piece
3
Motor power of spindle
KW
4×3
Max drilling diameter mm
mm
φ40
Drilling power head
Morse taper
Morse taper
4#
Power of servo motor
Kw
2KW×6
Max movement speed m/min
m/min
6
Work table
Dimension(L×W×H)mm
mm
16500*1240*600
Size of T slot
mm
28
Material of work table
High strength welding parts
Longitudinal traverse
Max stroke mm
mm
16000
Servo motor power Kw
Kw
2×2
Max traverse speed m/min
m/min
8
Control system
Control method
Computer+PLC
CNC axis
PCS
8
Cooling system
Cooling method
Water cooling
Motor power of cooling pump and quantity KW
KW
0.37X2
Clip removal system
Power of clip removal equipment
Kw
3X4，4 sets
Total power
KW
About 35
Total weight
kg
Approx. 46000
Outline dimension
L×W×H(without electrical cabinet)
mm
17000×4160×3000
FAQ
· Are you a Manufacturer or a Trading company？
Manufacturer + trading company （integration），focusing on CNC machines for 18 years. Integration with Design，Machining and Assembly.
Exporting to Russia，USA，Australia，Vietnam，Brazil，Ethiopia，Tunisia，Bulgaria，India，Indonesia，Jordan，Pakistan，etc
· Do you have stock product ready to delivery？
In order to satisfy with customer for fast delivery, we have certain amount of machines in stock.
· After an order is placed，when to delivery？
General 30 working days. It depends on specific items and item quantities.
Please check with sale manager for exact delivery time.
· What is the Warranty with After-sale Services？
12 months warranty after delivery. Engineers will provide training program for operation and trouble shouting during installation. They visit customers regularly for service. All questions will be answered within 3 hours and 90% problem will be solved within 24 hours.
After the warranty, the professional after-sale service team will provide perfect technical support and help customer solve problems encountered.
· What about the product quality？
Each machine must be carried out quality examination and test when shipping and delivery goods.
