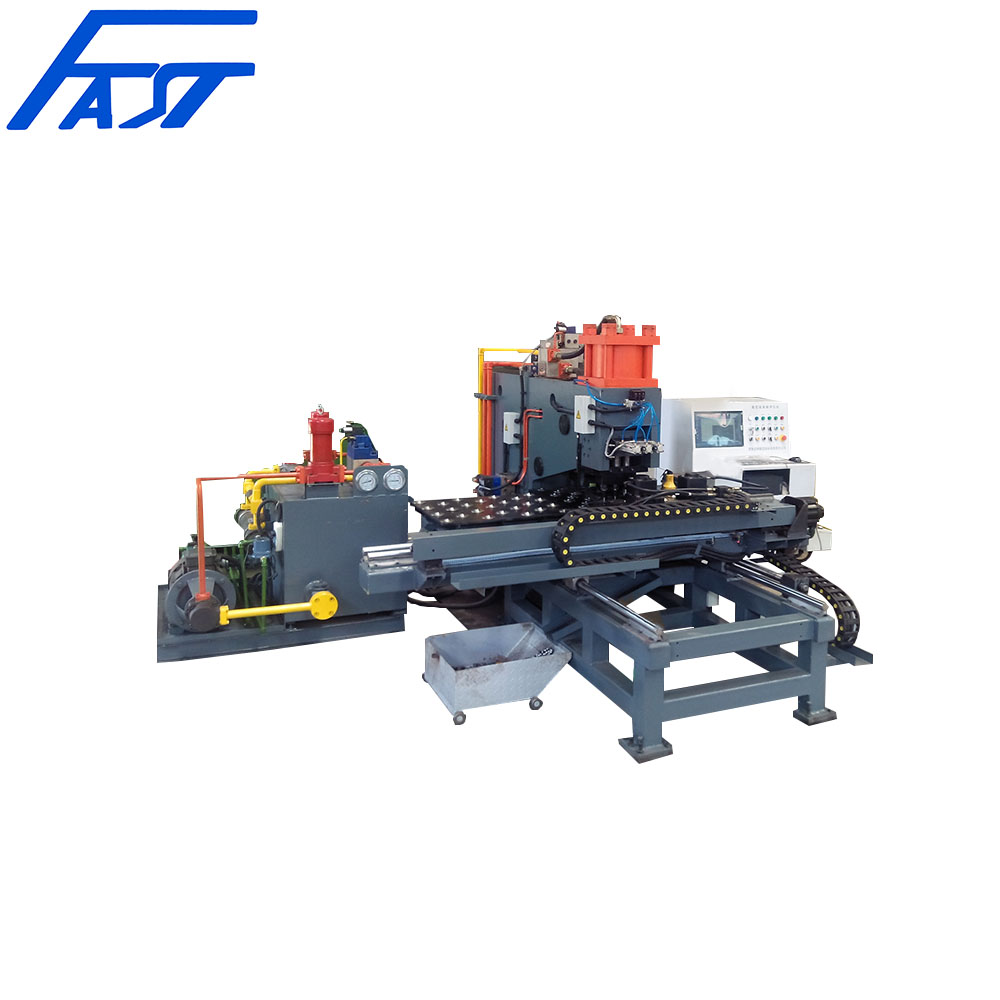

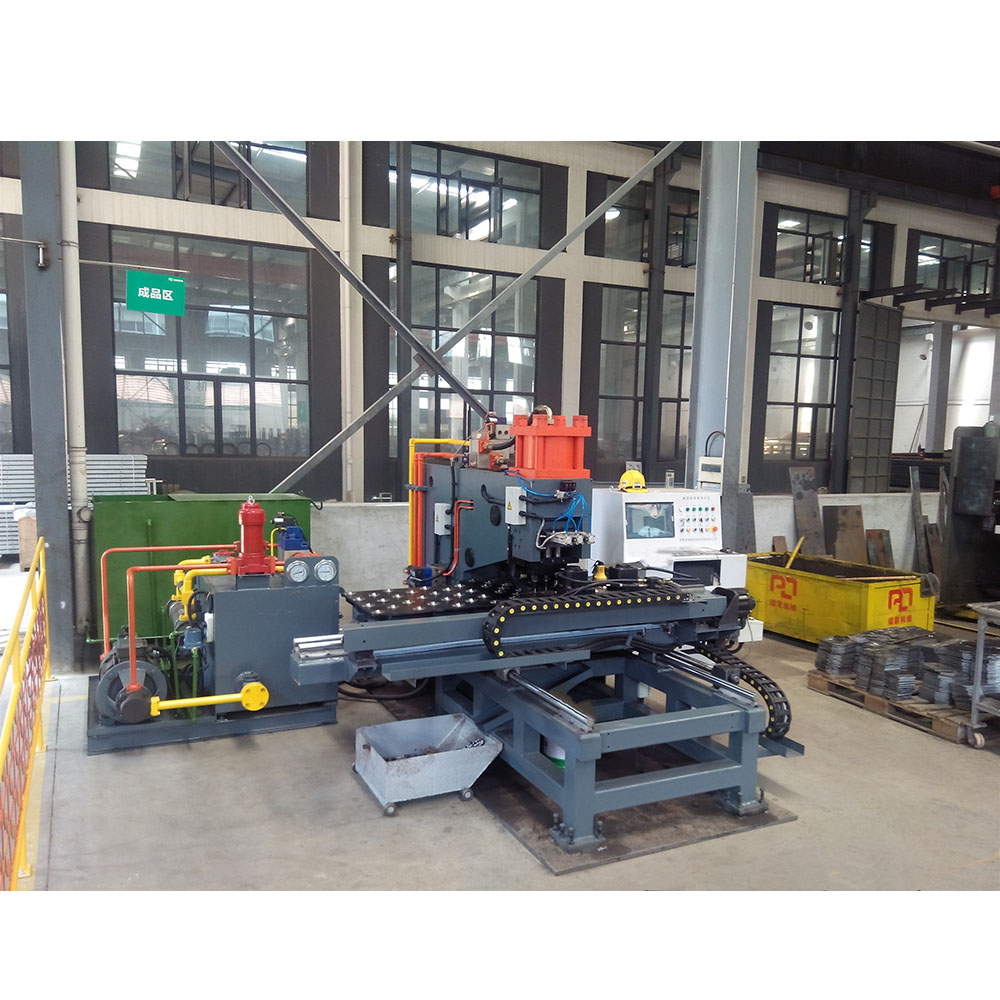

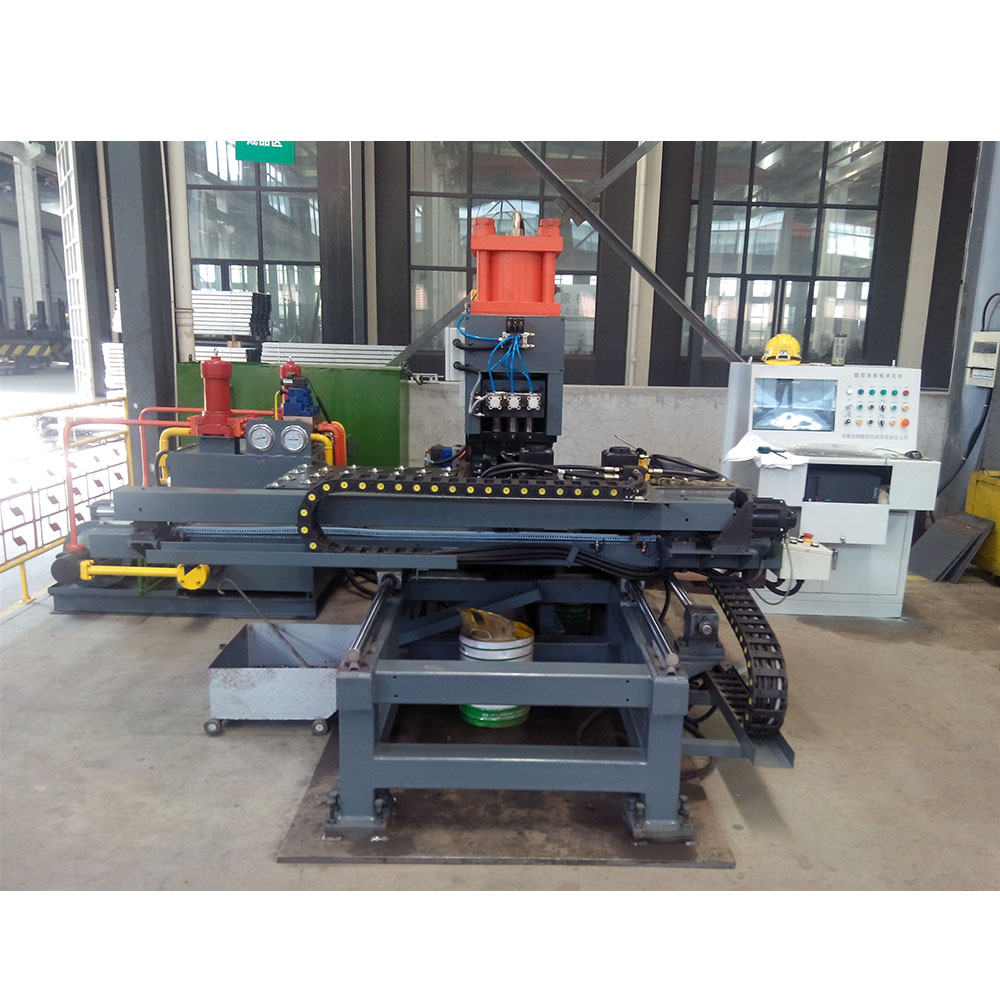

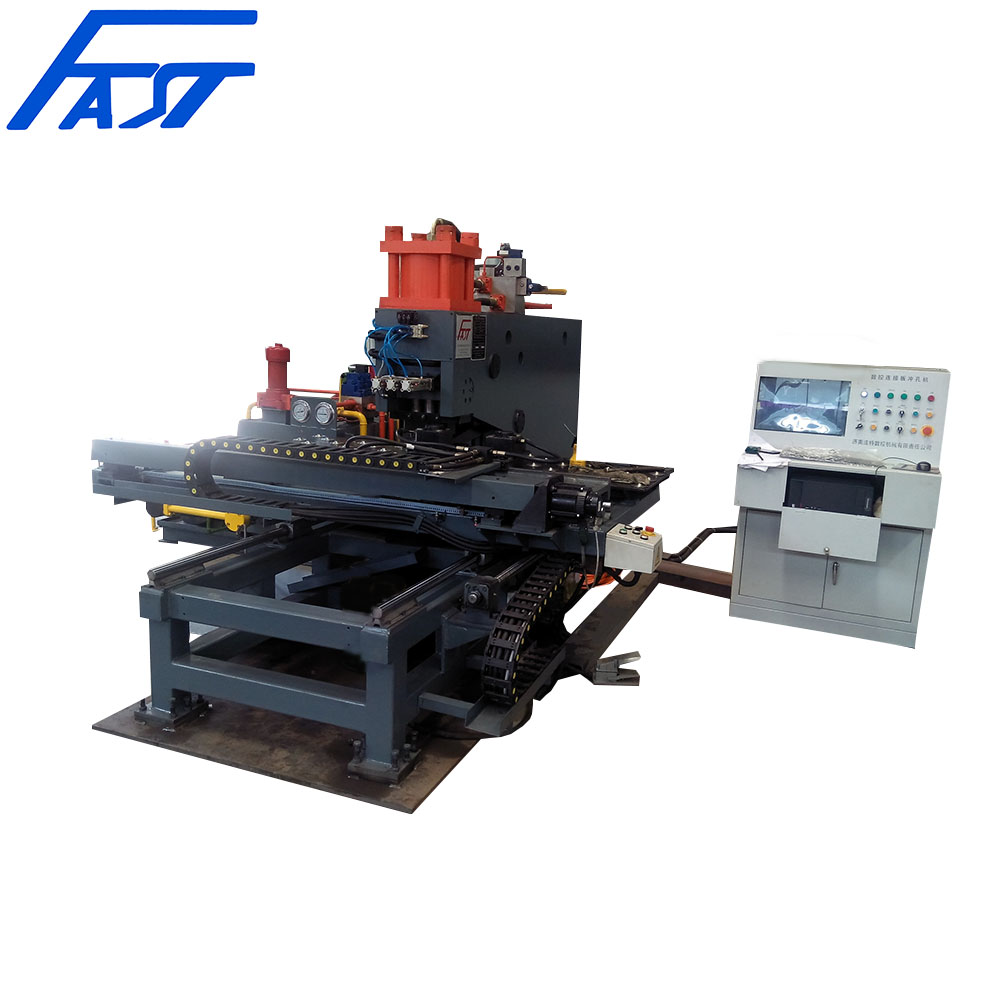

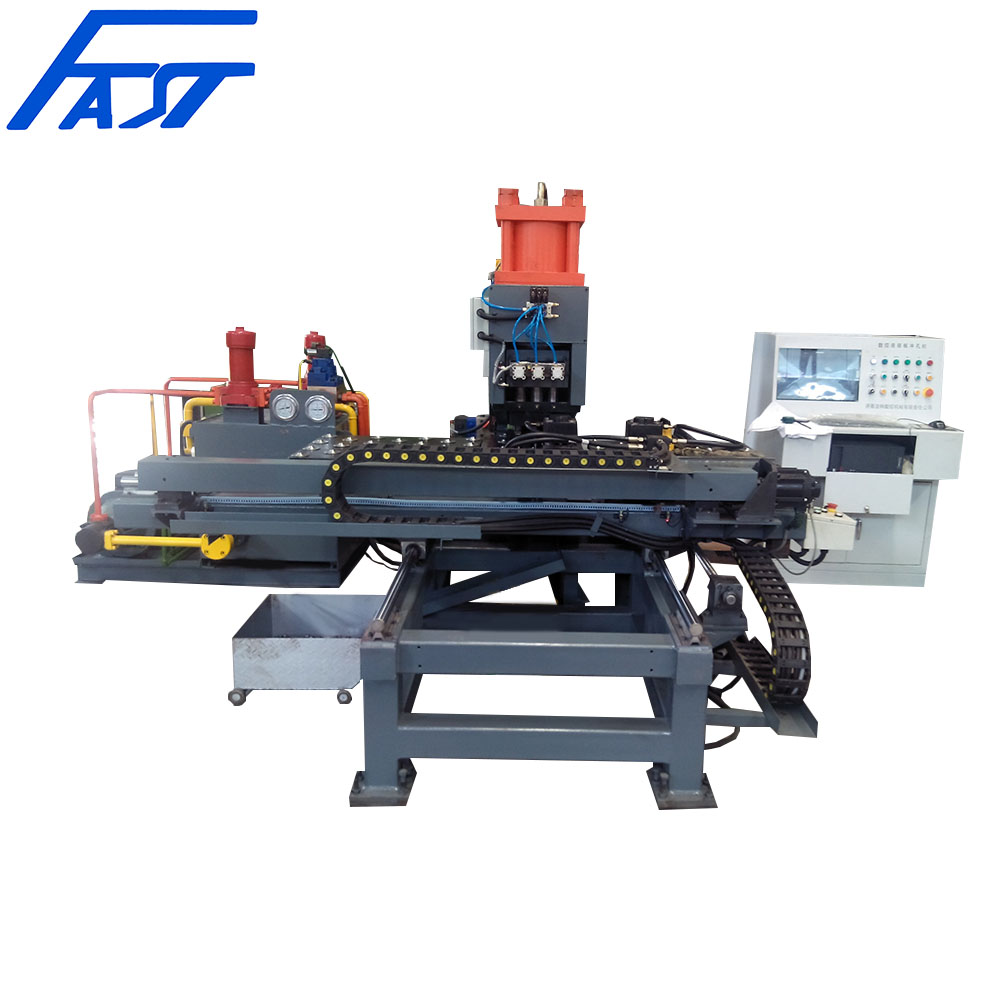

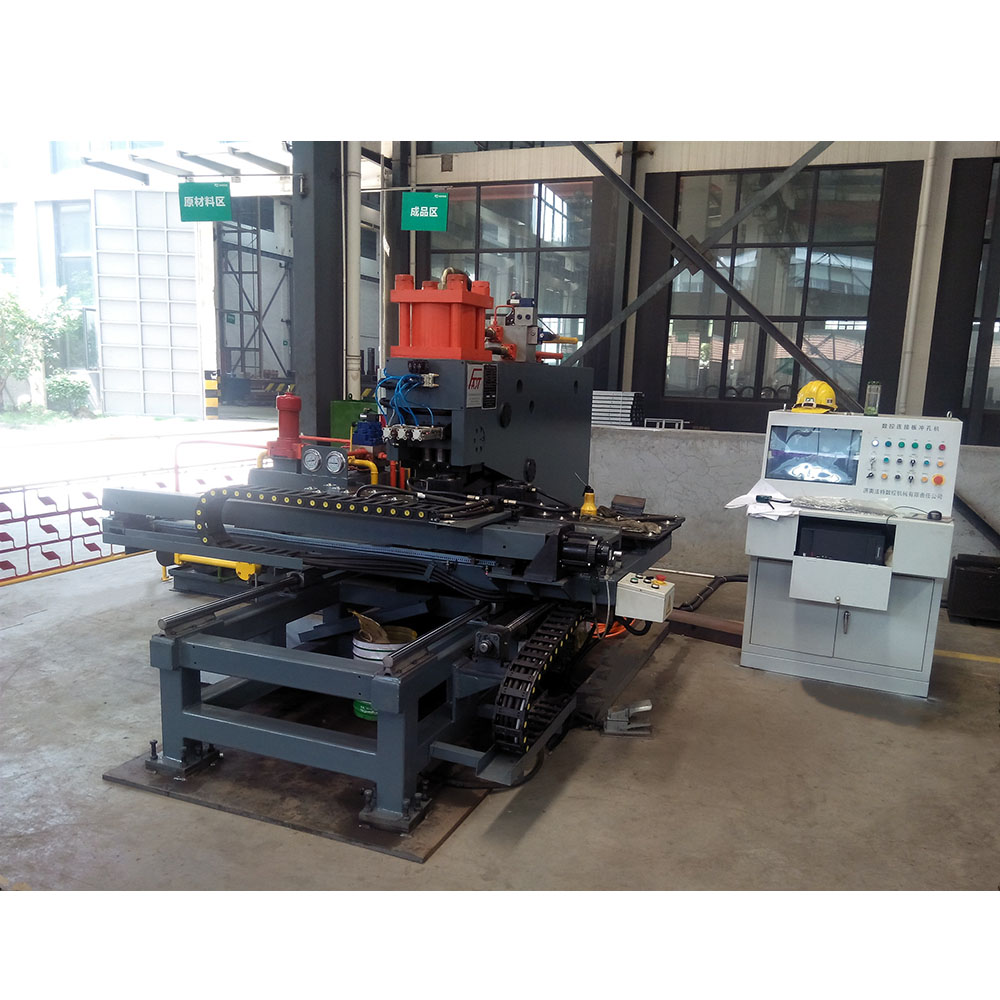

CNC Sheet Metal Punching Machine CJ103
APPLICATION
This machine is used for punching and marking of joint plate in the field of iron tower. It is also used to punch and mark of metal plate.
TECHNICAL DATA
Model
CJ103
CJ104
CJ121
CJ123
Max. Size of Work Piece L*W (mm)
1500*800
1500*800
1500*800
1500*800
Max. diameter of punching (mm)
Φ32
Φ32
Φ40
Φ40
Plate Thickness of Punching (mm)
5～20
5～25
5～25
5～25
Max. diameter of Drilling
Φ50
Punching Force (kN)
1000
1000
1200
1200
Marking Force (kN)
1000
1000
1200
1200
Min. Distance Between Hole And Plate Edge (mm)
Punching
25
25
30
30
Drilling
Depends on hole diameter
Dimensions of Characters (mm）
14*10*20
14*10*20
14*10*20
14*10*20
Quantity of
Characters
14/18
14/18
14/18
14/18
Die-Stations
3
4
1
3
Feeding Speed of Drilling (mm/min)
20~280
Strok of Drilling Spindle (mm)
180
Rotation Speed of Drilling Spindle (r/min)
100~750
Precision
Accordance with GB2694-2003
Accordance with GB2694-2003
Accordance with GB2694-2003
Accordance with GB2694-2003
Programming Mode
Input by keyboard, RS232 interface, floppy disk and USB interface
Overall Dimension L*W*H (mm)
3200*2520*1875
3500*2520*2600
3700*2520*1875
3700*2520*1875
Model
CJ80
CJ161/
CJ163
CJ201/
CJ202/
CJ203
CJ301
Max. Size of Work Piece L*W (mm)
4000*1800
1500*800
1500*1500
1850*1850
Max. diameter of punching (mm)
Depends on Workpiece Thickness
Φ50
Φ50
Φ60
Plate Thickness of Punching (mm)
2~10
5~25
5～30
5~30
Punching Force (kN)
800
1600
2000
3000
Marking Force (kN)
800
None
None
None
Min. Distance Between Hole And Plate Edge (mm)
20
30
25-35, Φ≤37mm； 35~50，37mm＜Φ≤60mm
Dimensions of Characters (mm)
14*10*12
None
None
None
Quantity of
Characters
14
None
None
None
Die-Stations
1 ~ 7
By Customer’s Request
1/3
1/2/3
1
Precision
Accordance with GB2694-2003
Accordance with GB2694-2003
Accordance with GB2694-2003
Accordance with GB2694-2003
★ All of these models can be customized according to customer requirements.
